OEM Wiring Diagrams -- (Hybrid)
>>
Module Communications Network
>>
MKZ Without Rain Sense
MKZ Without Rain Sense

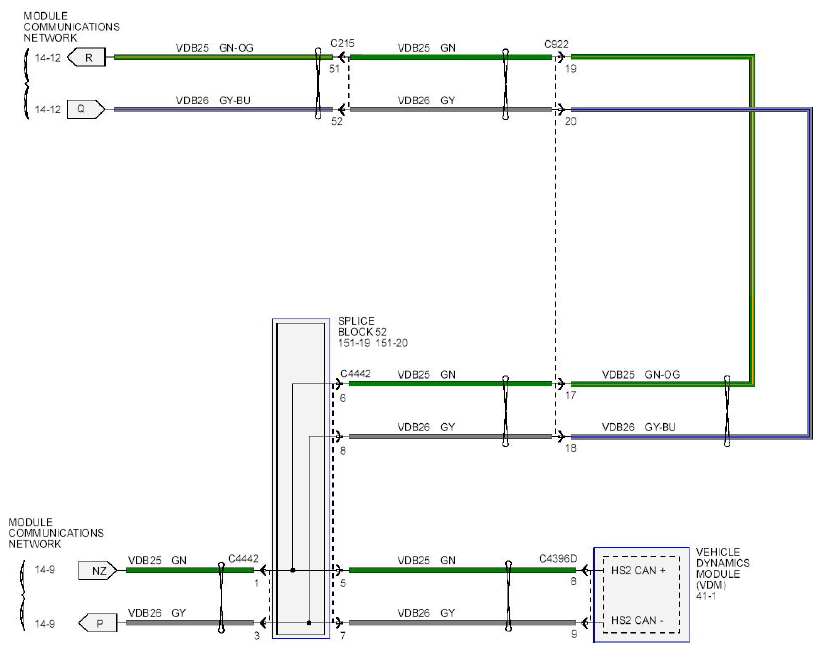

Fig 1: Module Communications Network Wiring Diagram - MKZ, Without Rain Sense
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
