Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Module Communications Network
>>
MKZ THX® Audio
MKZ THX® Audio

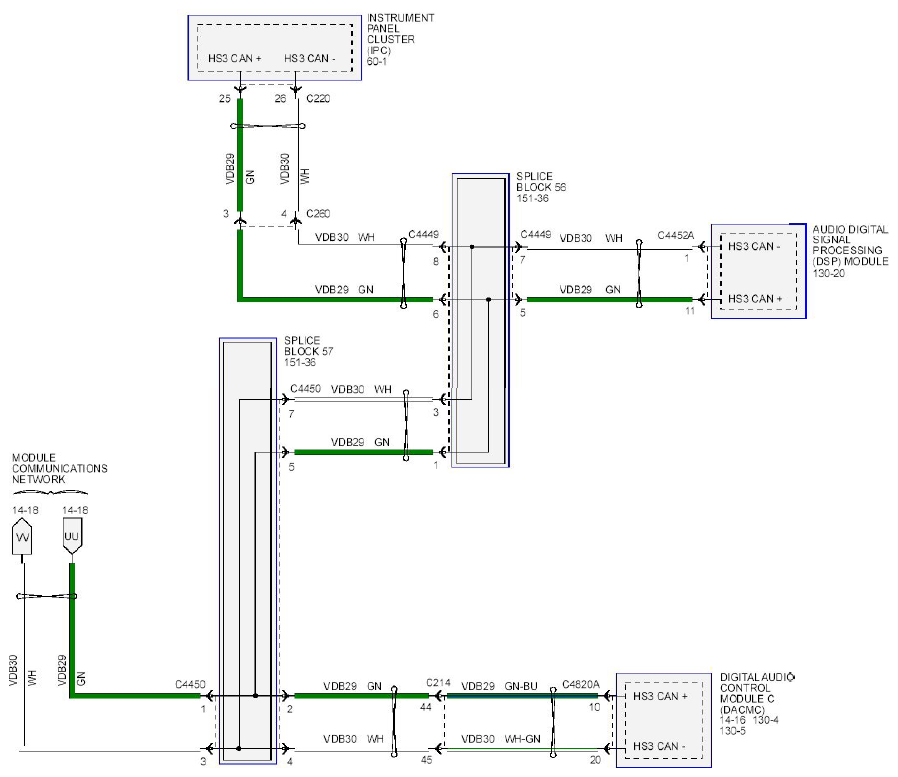

Fig 1: Module Communications Network Wiring Diagram - MKZ, THX® Audio
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
