Module Communications Network
>>
MKZ Rain Sense
MKZ Rain Sense

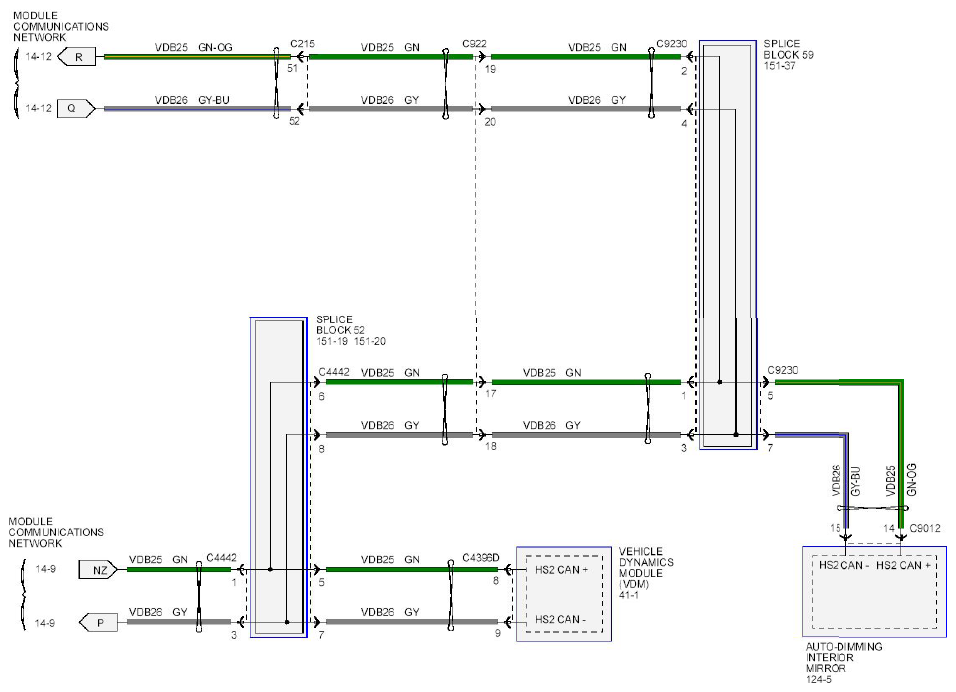

Fig 1: Module Communications Network Wiring Diagram - MKZ, Rain Sense
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
