Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Module Communications Network
>>
Fusion With Blind Spot Information System (BLIS) ®
Fusion With Blind Spot Information System (BLIS) ®

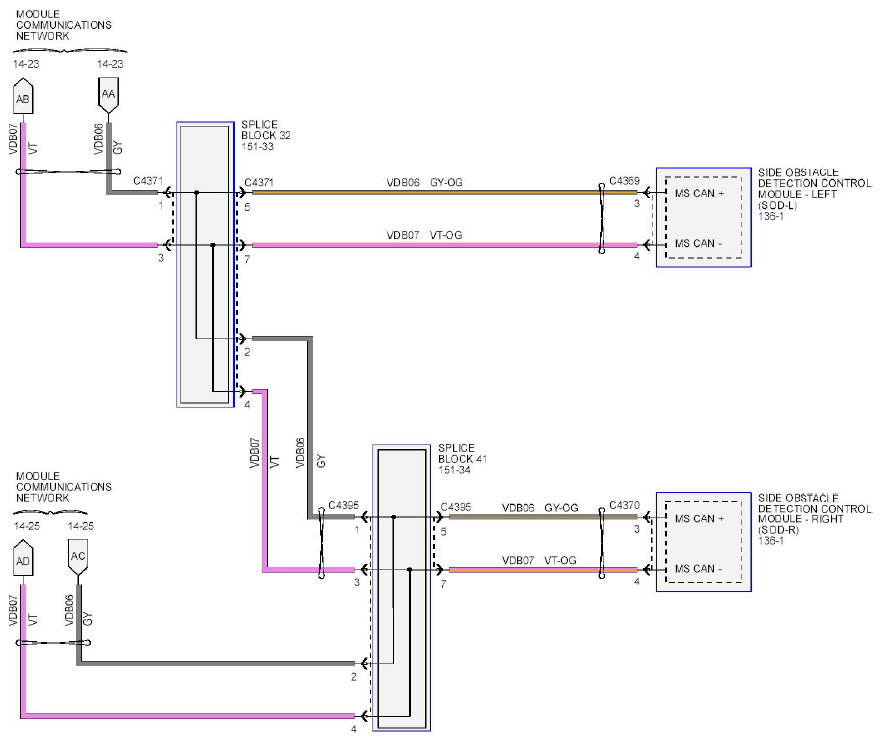

Fig 1: Module Communications Network Wiring Diagram - Fusion With Blind Spot Information System ®
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
