Fusion Memory

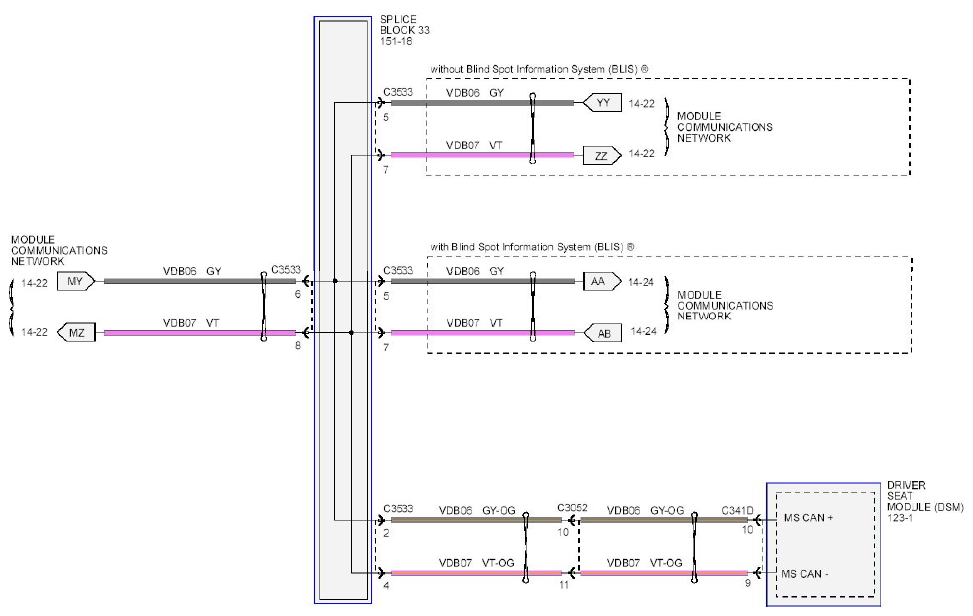

Fig 1: Module Communications Network Wiring Diagram - Fusion, Memory

G08754112

Courtesy of FORD MOTOR CO.
