Memory Seats: Notes

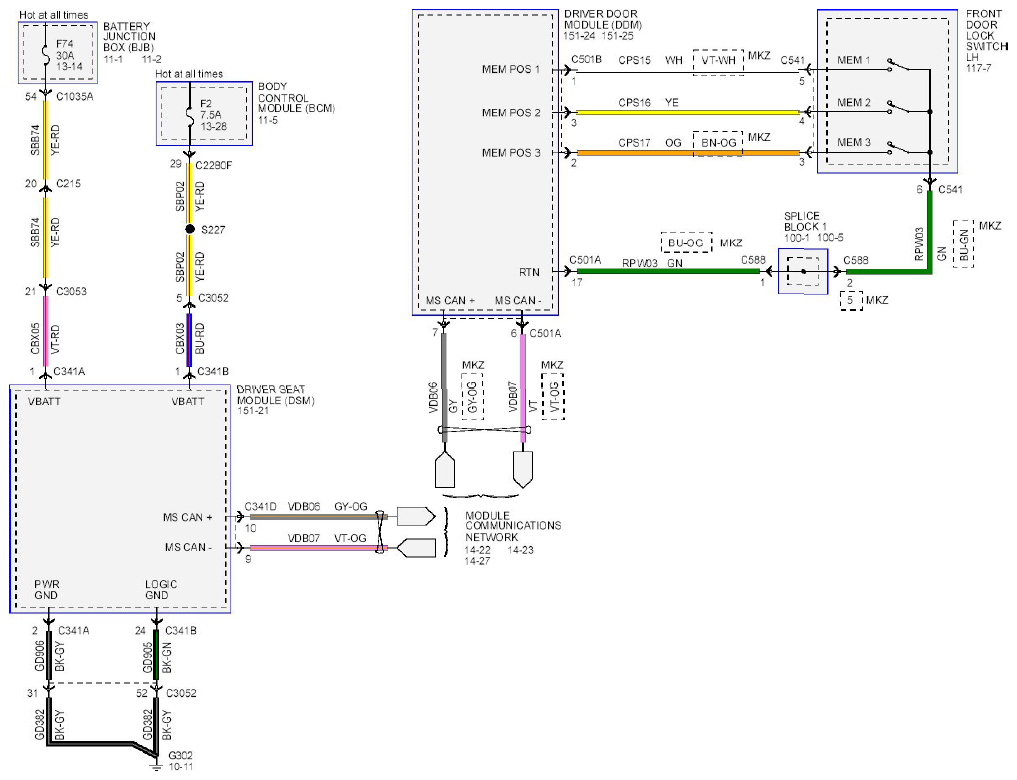

Fig 1: Memory Seats Wiring Diagram - (1 Of 2)
G08754272Courtesy of FORD MOTOR CO.

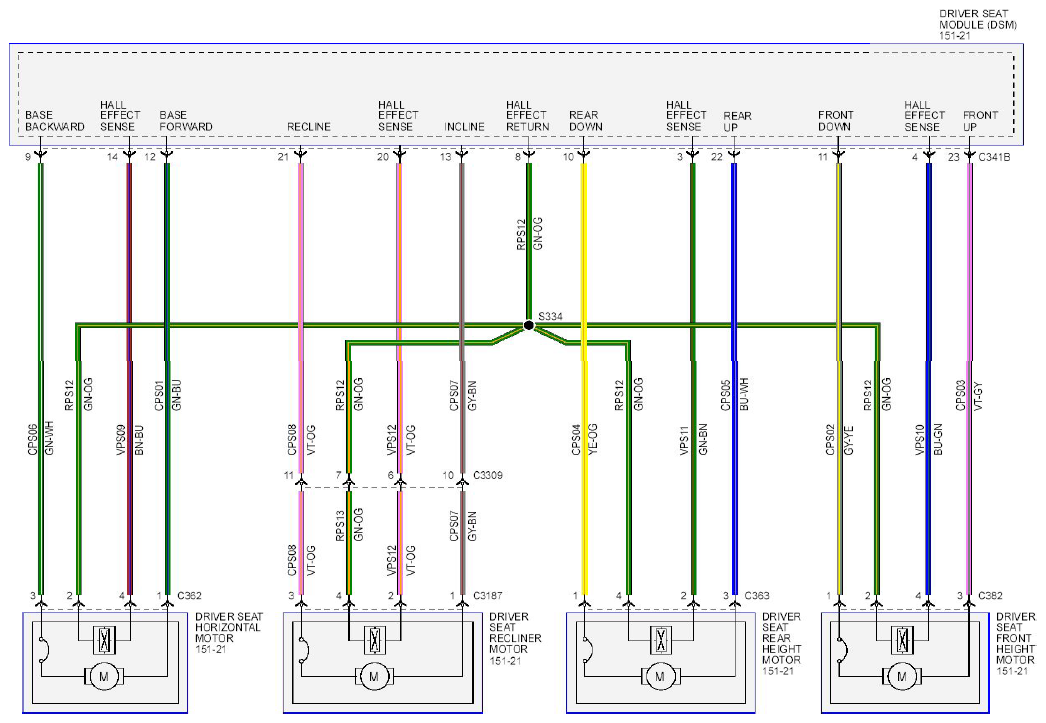

Fig 2: Memory Seats Wiring Diagram - (2 Of 2)
G08754274Courtesy of FORD MOTOR CO.

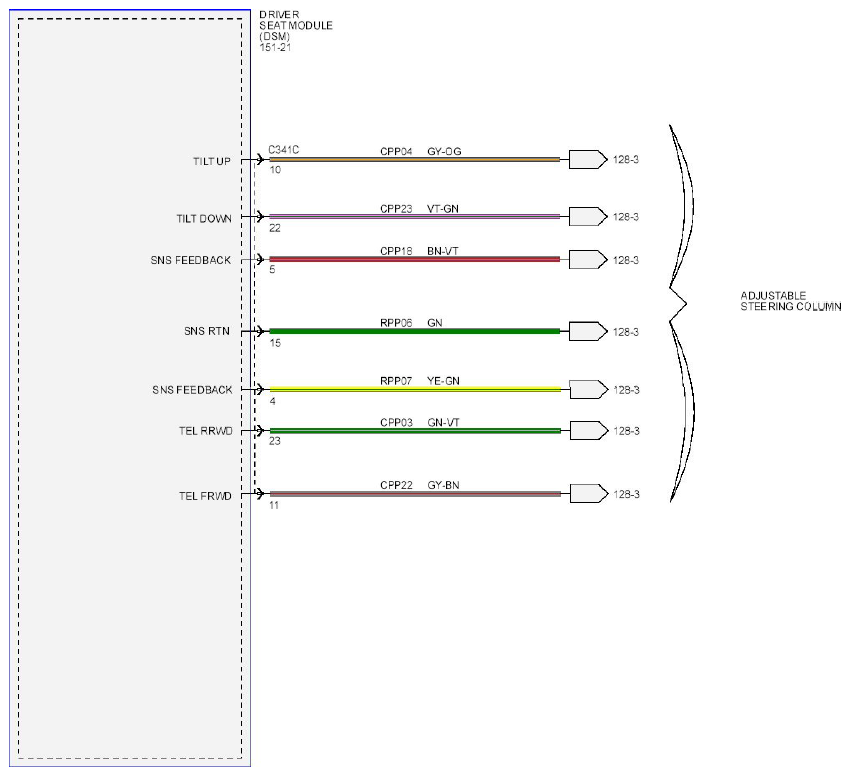

Fig 3: Memory Seats Wiring Diagram - (3 Of 3)
G08754278Courtesy of FORD MOTOR CO.
