Memory Seats
>>
10-Way Power Seat With Multi Contour - Driver
10-Way Power Seat With Multi Contour - Driver

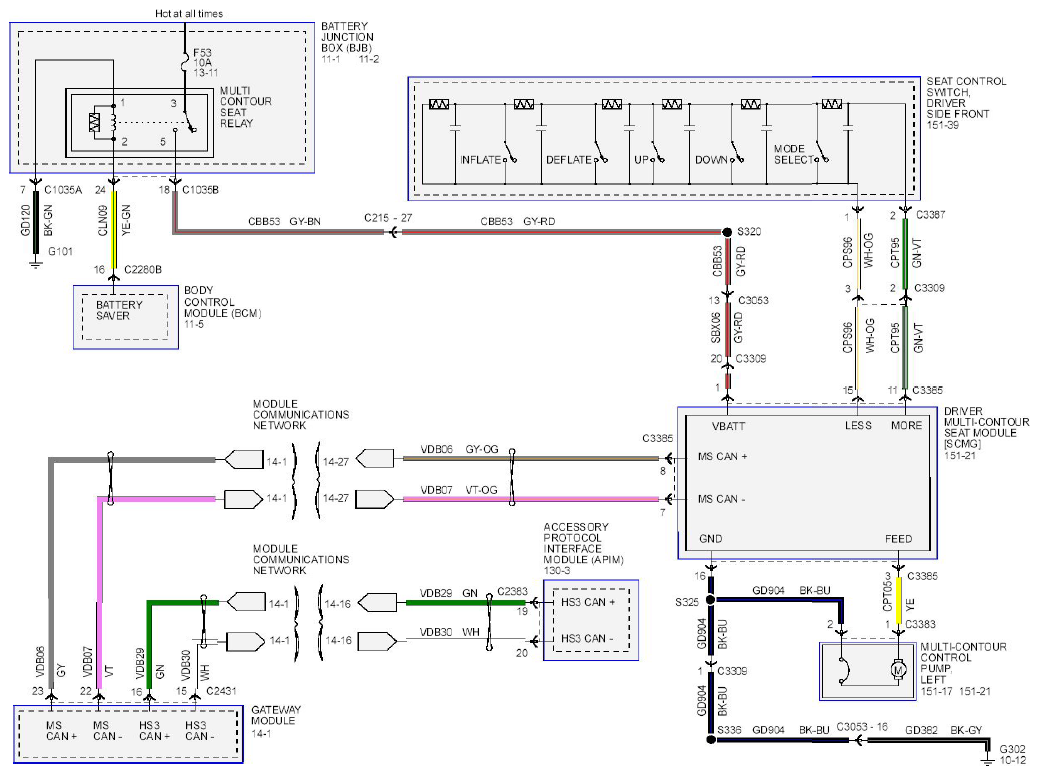

Fig 1: Memory Seats Wiring Diagram - 10-Way Power Seat With Multi Contour, Driver
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
