10-Way Power Seat With Memory - Driver

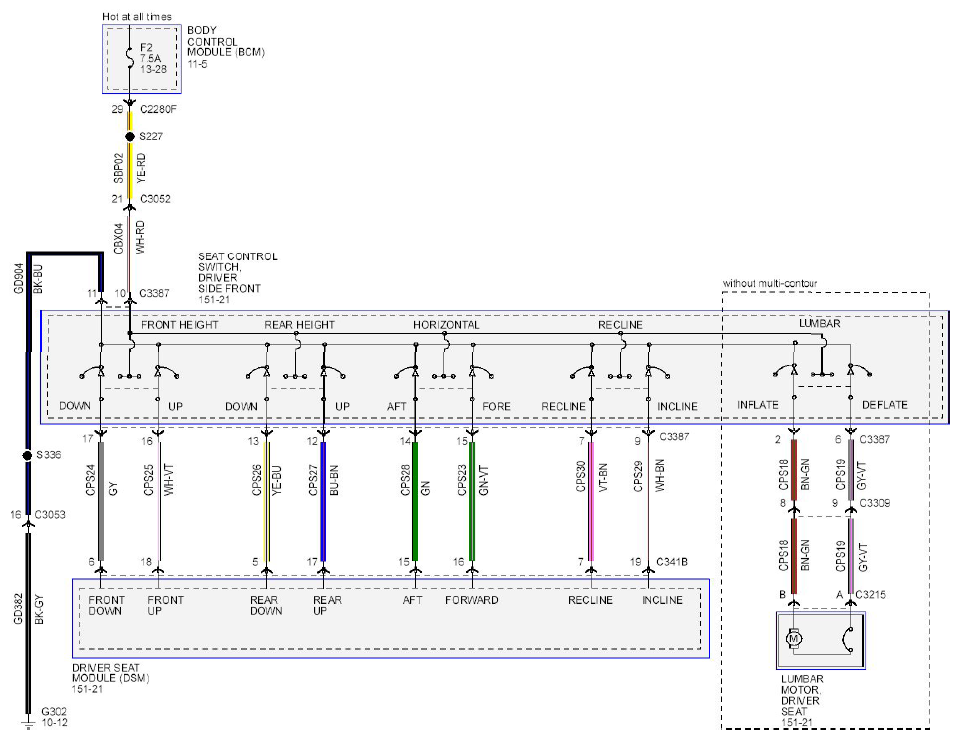

Fig 1: Memory Seats Wiring Diagram - 10-Way Power Seat With Memory, Driver

G08754273

Courtesy of FORD MOTOR CO.
