Interior Lamps: Notes

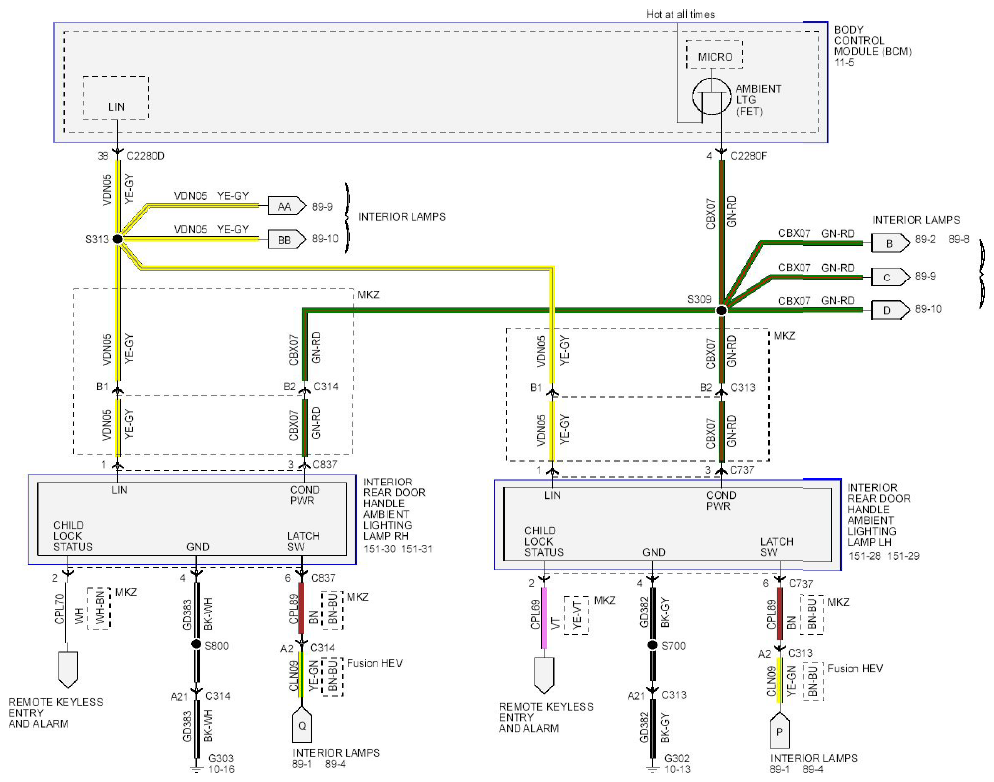

Fig 1: Interior Lamps Wiring Diagram - (1 Of 4)
G08754200Courtesy of FORD MOTOR CO.

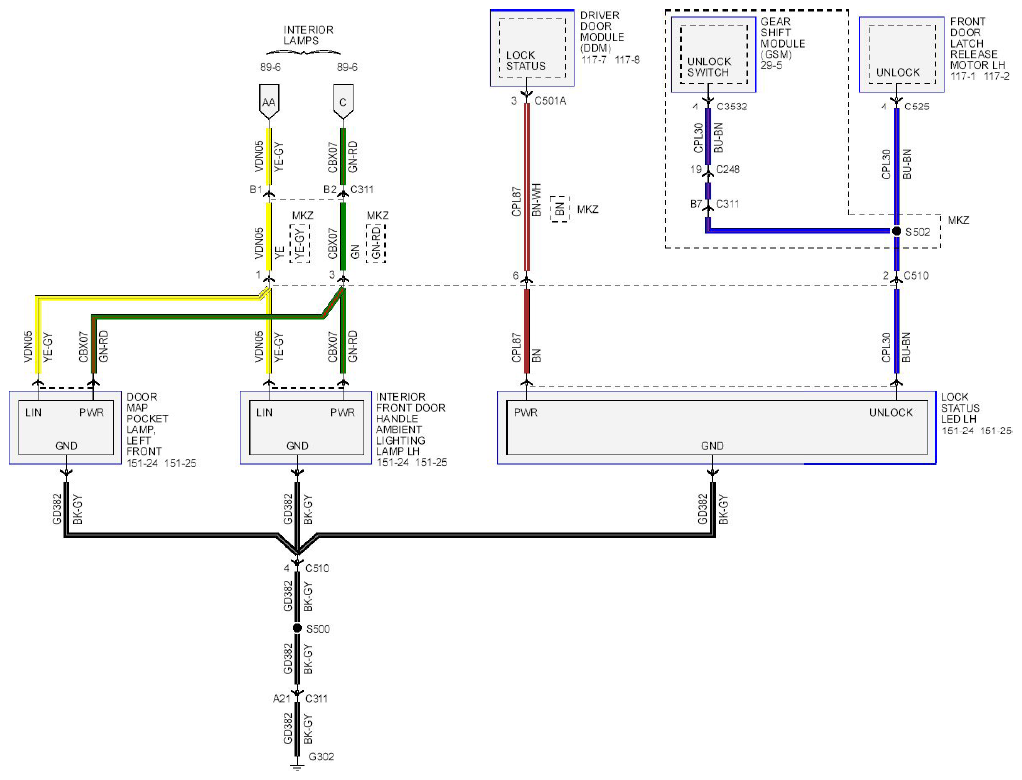

Fig 2: Interior Lamps Wiring Diagram - (2 Of 4)
G08754203Courtesy of FORD MOTOR CO.

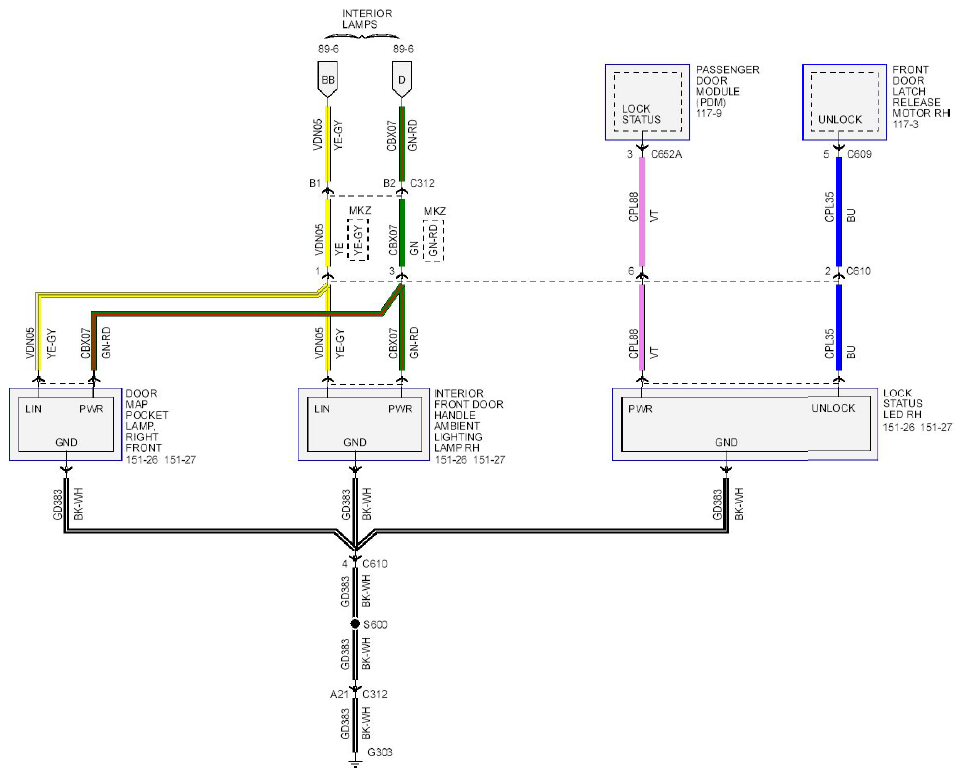

Fig 3: Interior Lamps Wiring Diagram - (3 Of 4)
G08754204Courtesy of FORD MOTOR CO.

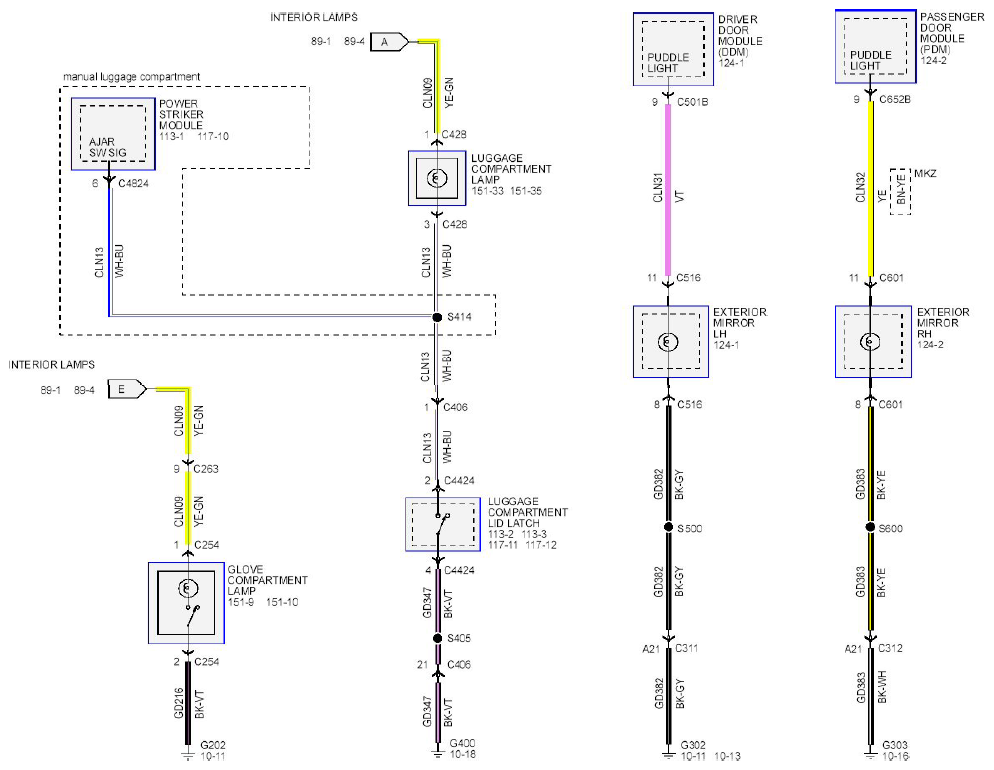

Fig 4: Interior Lamps Wiring Diagram - (4 Of 4)
G08754205Courtesy of FORD MOTOR CO.
