Instrument Cluster
>>
Notes
Instrument Cluster: Notes

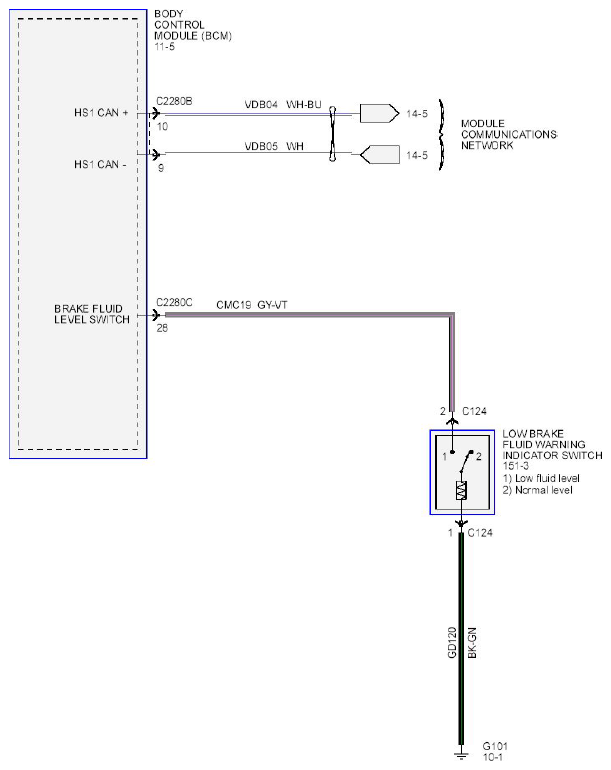

Fig 1: Instrument Cluster Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

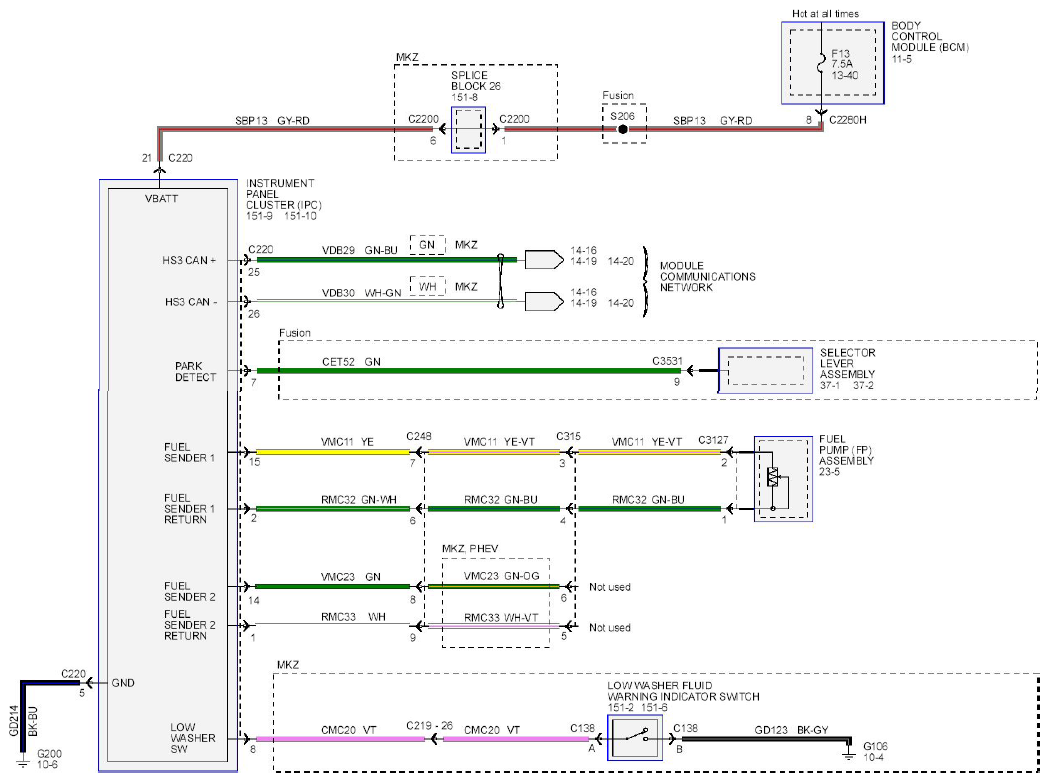

Fig 2: Instrument Cluster Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
