Heated Window
Heated Window
Fig 1: Heated Window Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

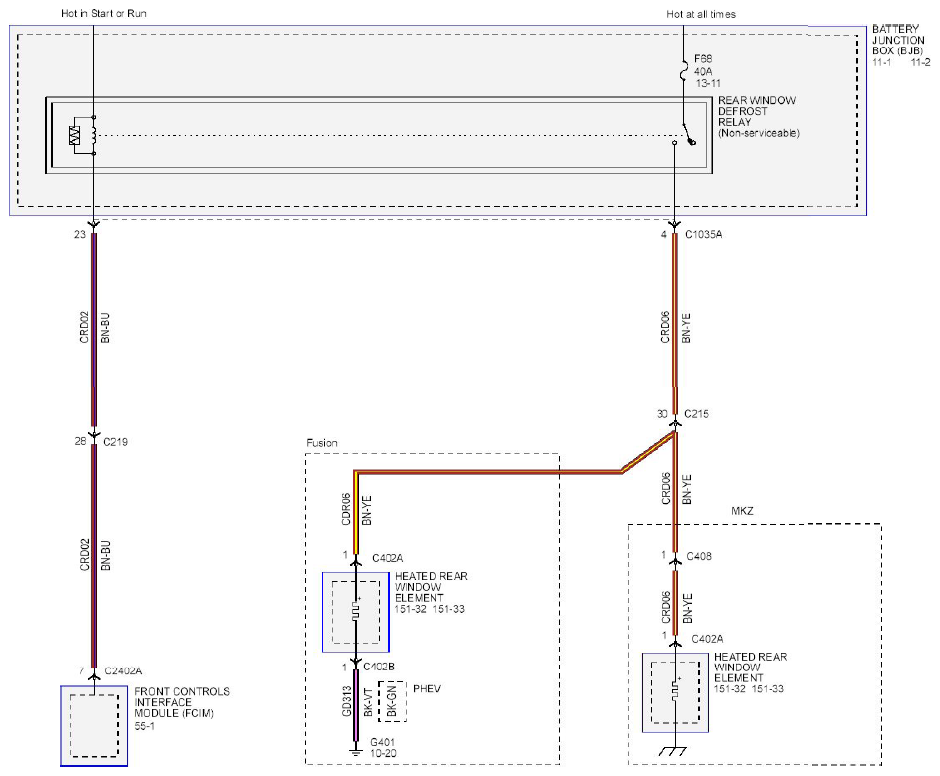

Fig 2: Heated Window Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
