OEM Wiring Diagrams -- (Hybrid): Headlamps_Autolamps: Led

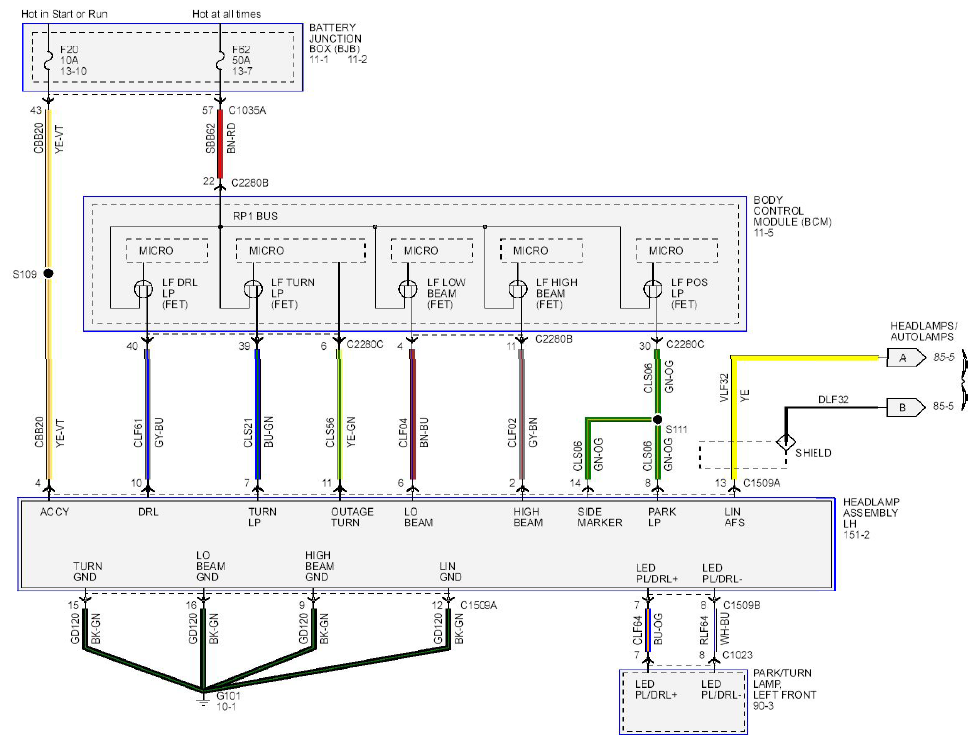

Fig 1: Headlamps / Autolamps Wiring Diagram - LED (1 Of 3)
G08754191Courtesy of FORD MOTOR CO.

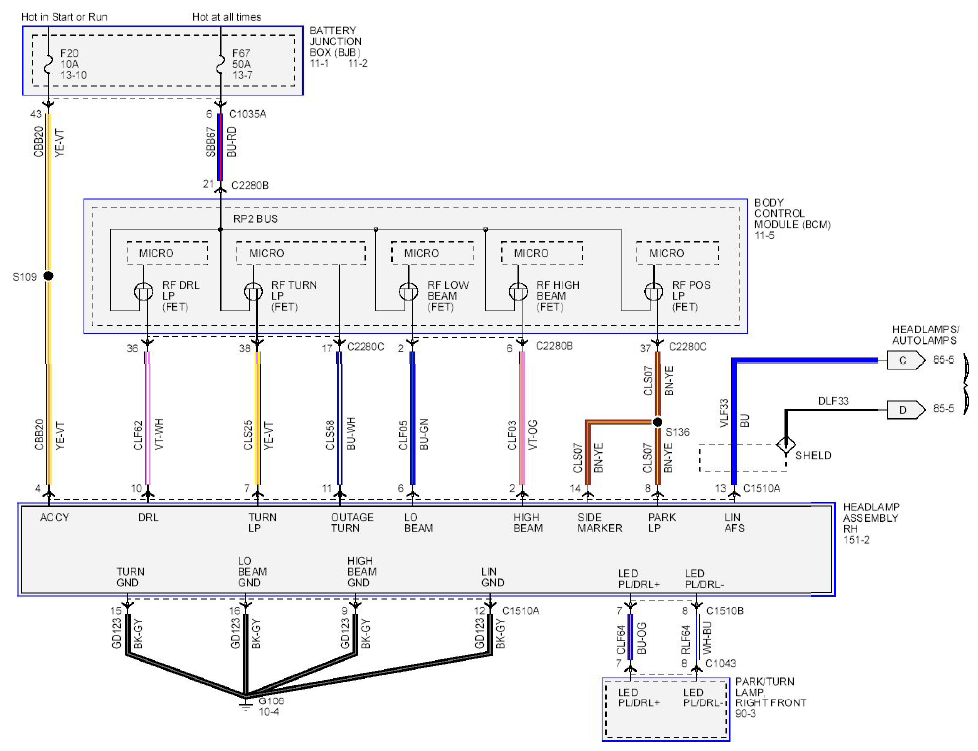

Fig 2: Headlamps / Autolamps Wiring Diagram - LED (2 Of 3)
G08754192Courtesy of FORD MOTOR CO.

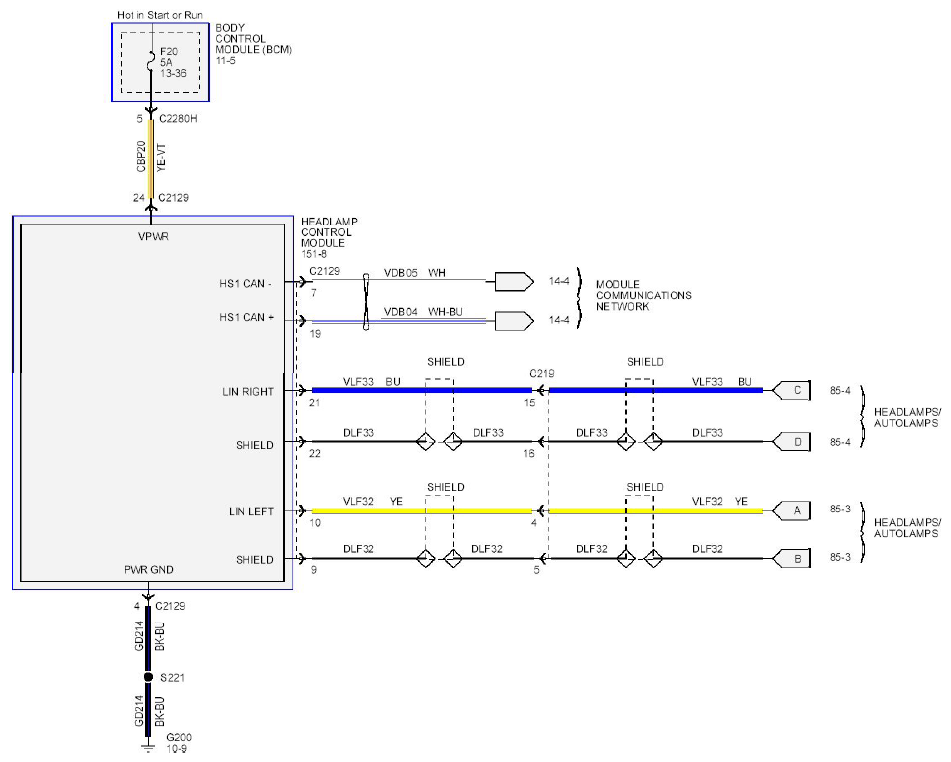

Fig 3: Headlamps / Autolamps Wiring Diagram - LED (3 Of 3)
G08754193Courtesy of FORD MOTOR CO.
