Fuel Filler Door Release
Fuel Filler Door Release

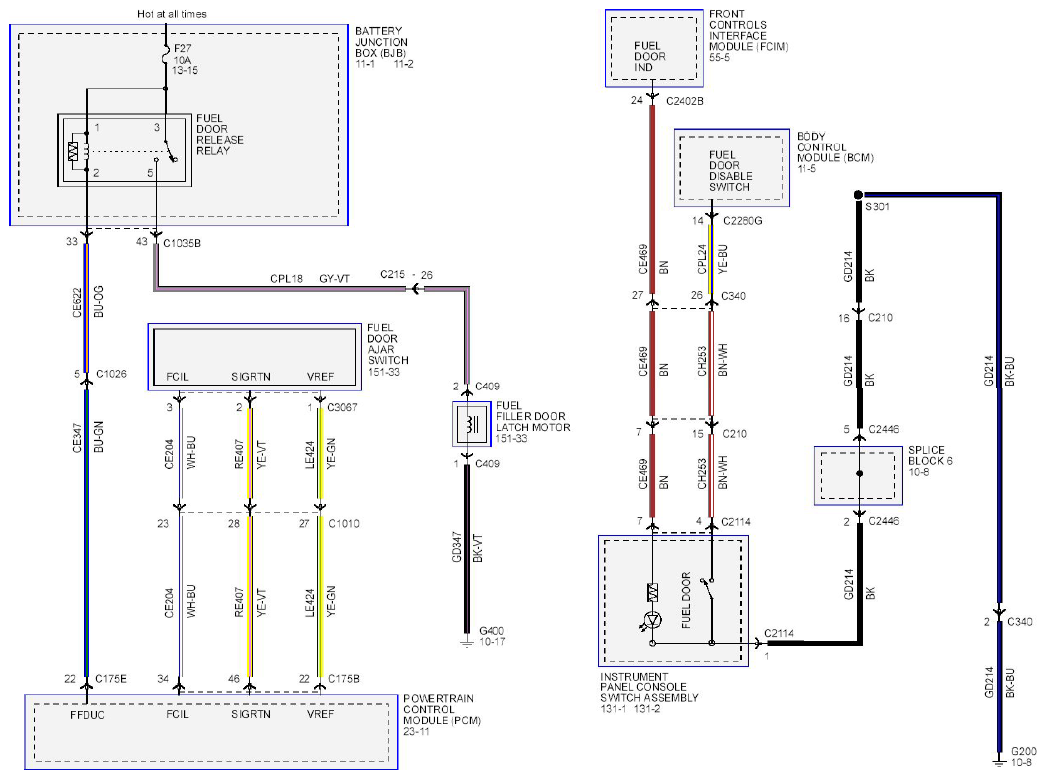

Fig 1: Fuel Filler Door Release Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
