Electronic Engine Controls

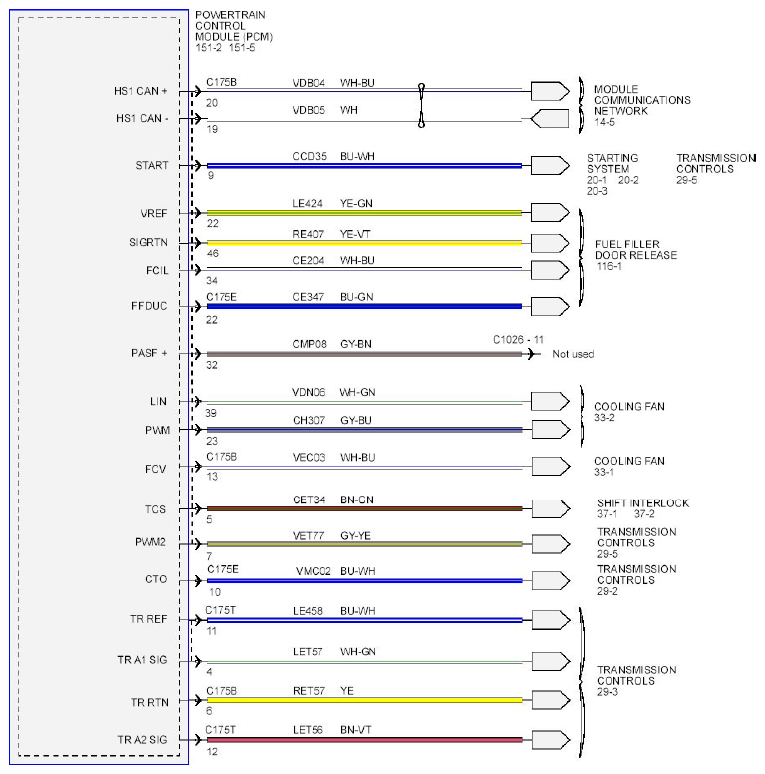

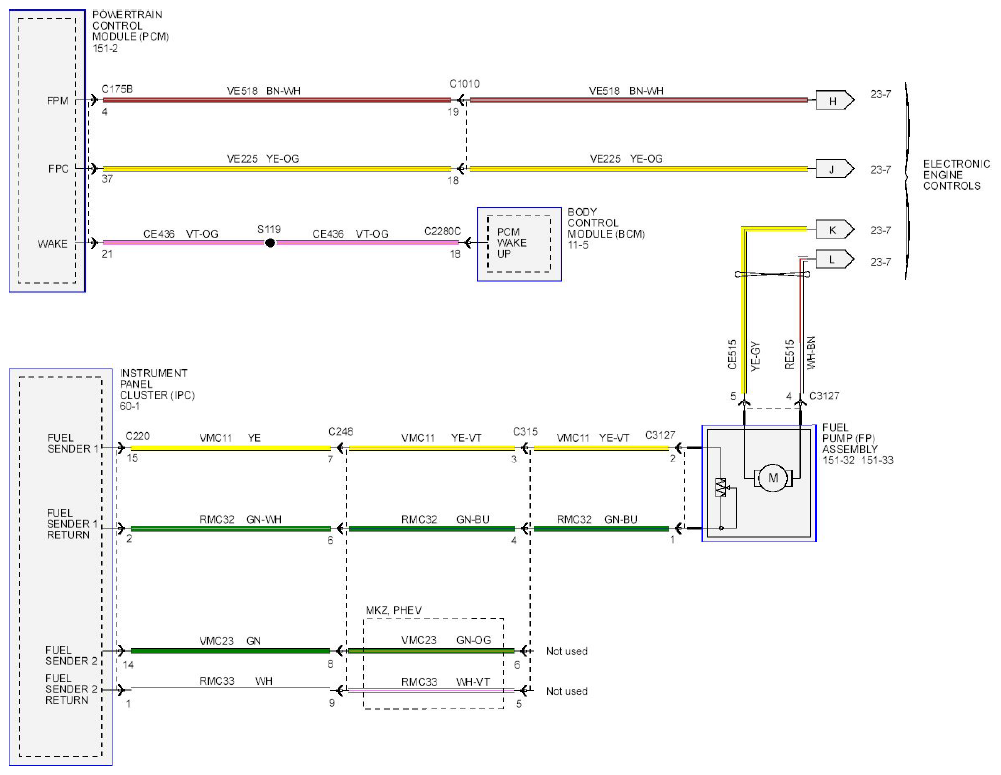

Fig 1: Electronic Engine Controls Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR CO.

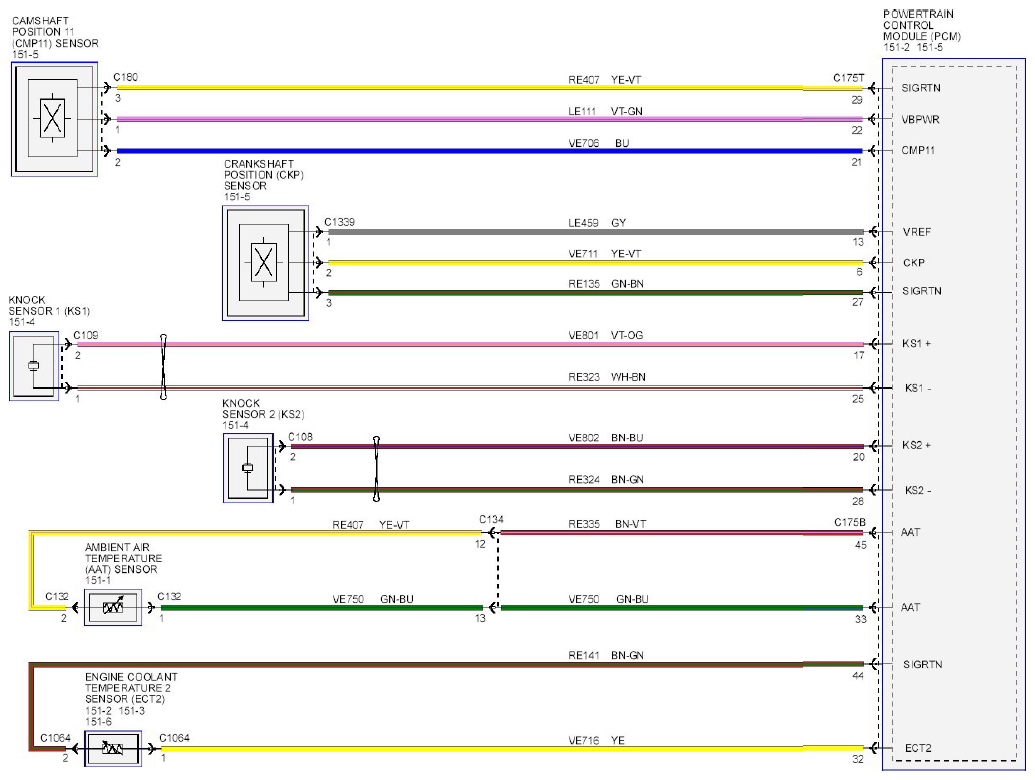

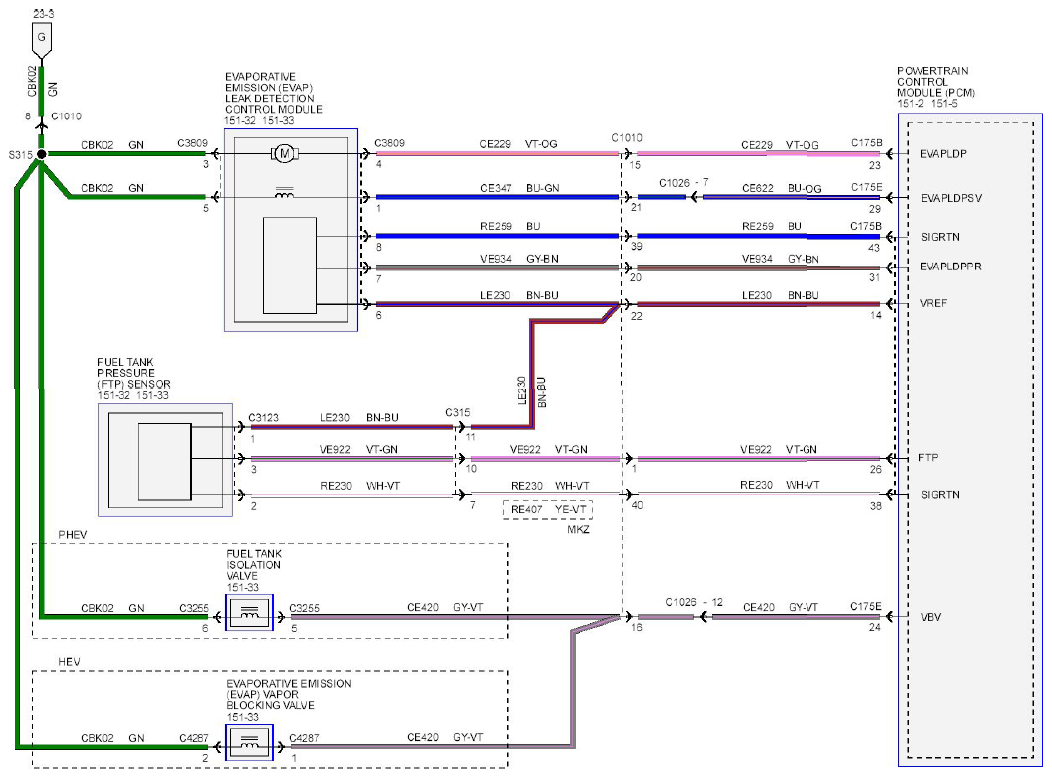

Fig 2: Electronic Engine Controls Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR CO.

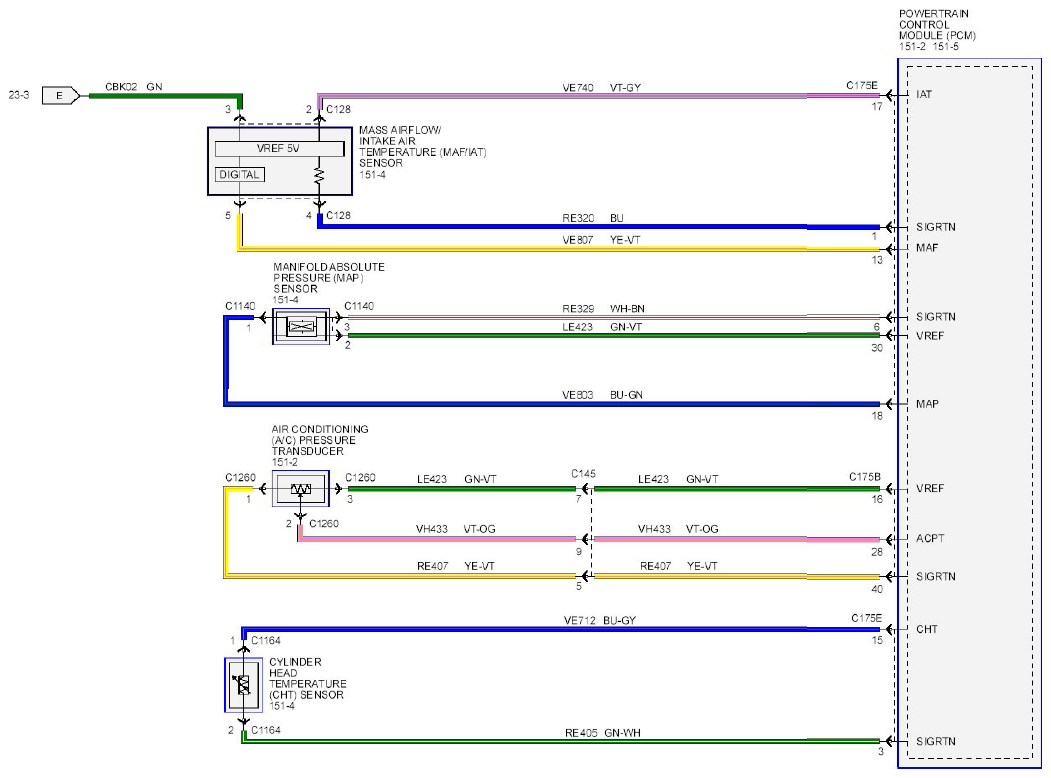

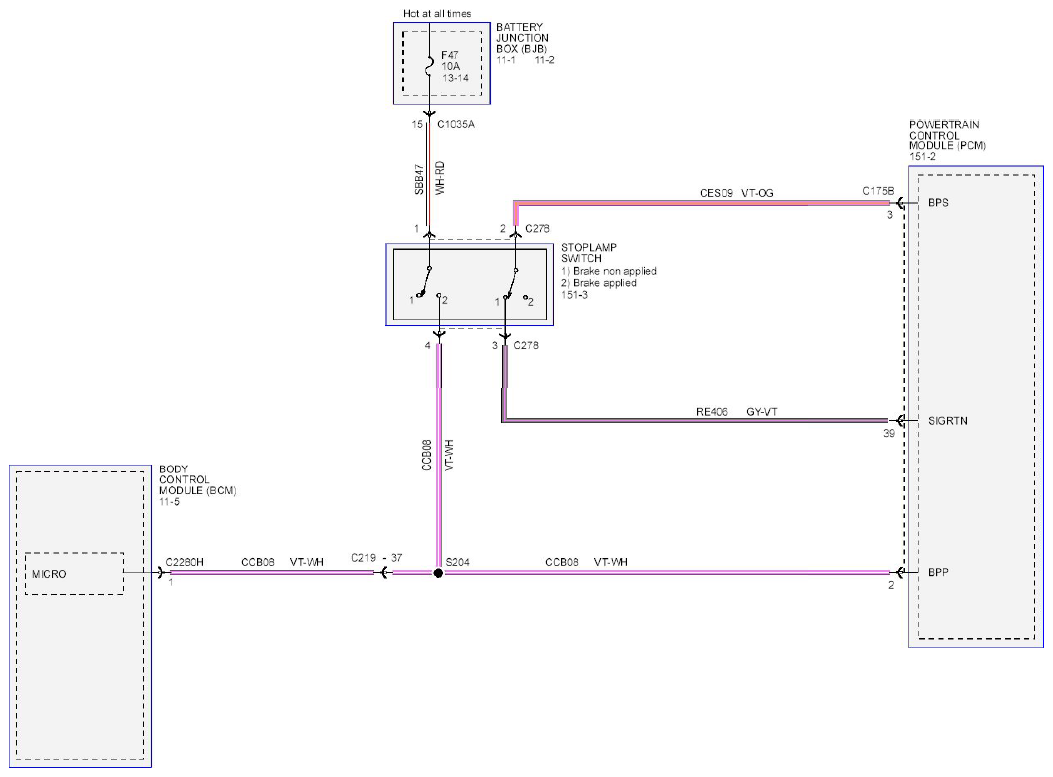

Fig 3: Electronic Engine Controls Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR CO.

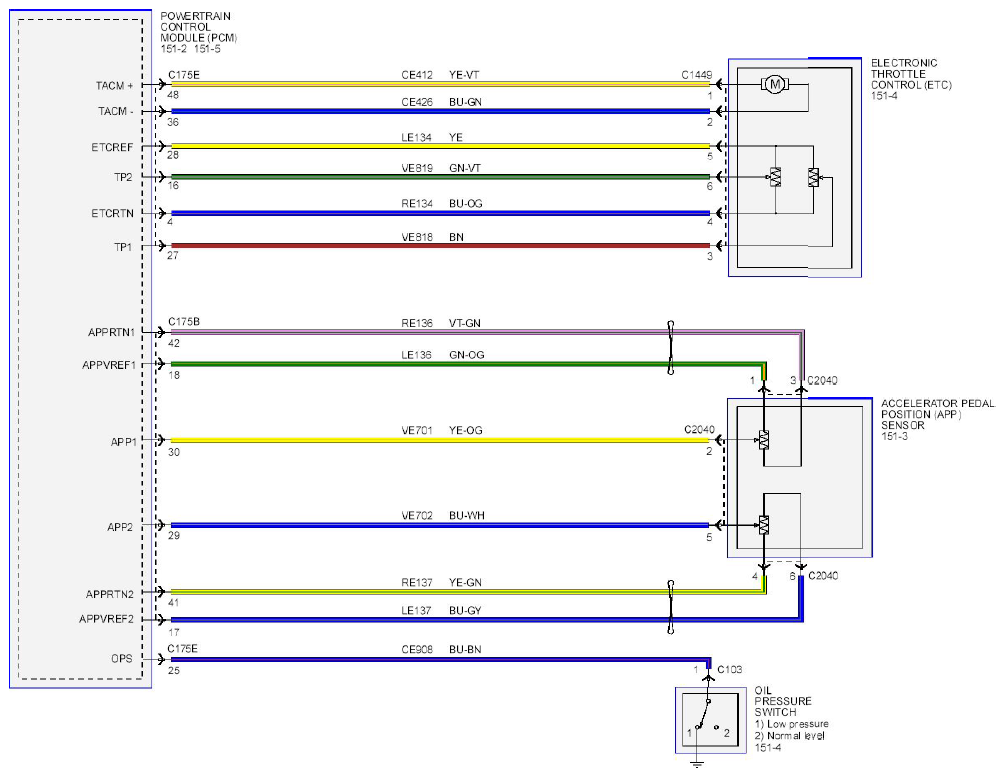

Fig 4: Electronic Engine Controls Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR CO.

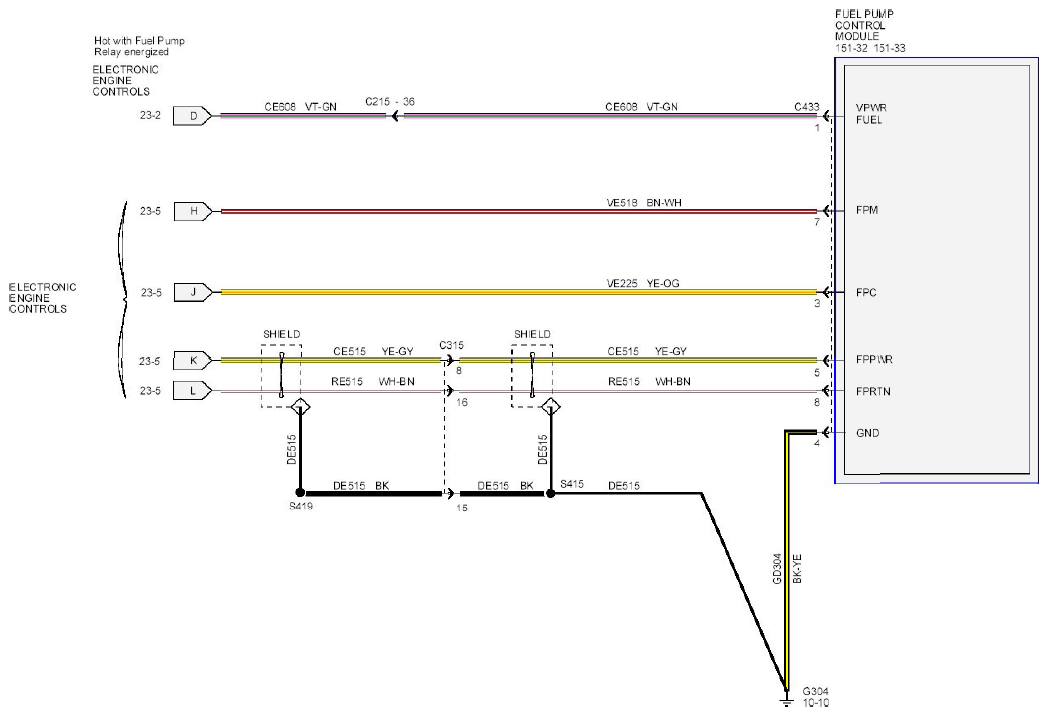

Fig 5: Electronic Engine Controls Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR CO.

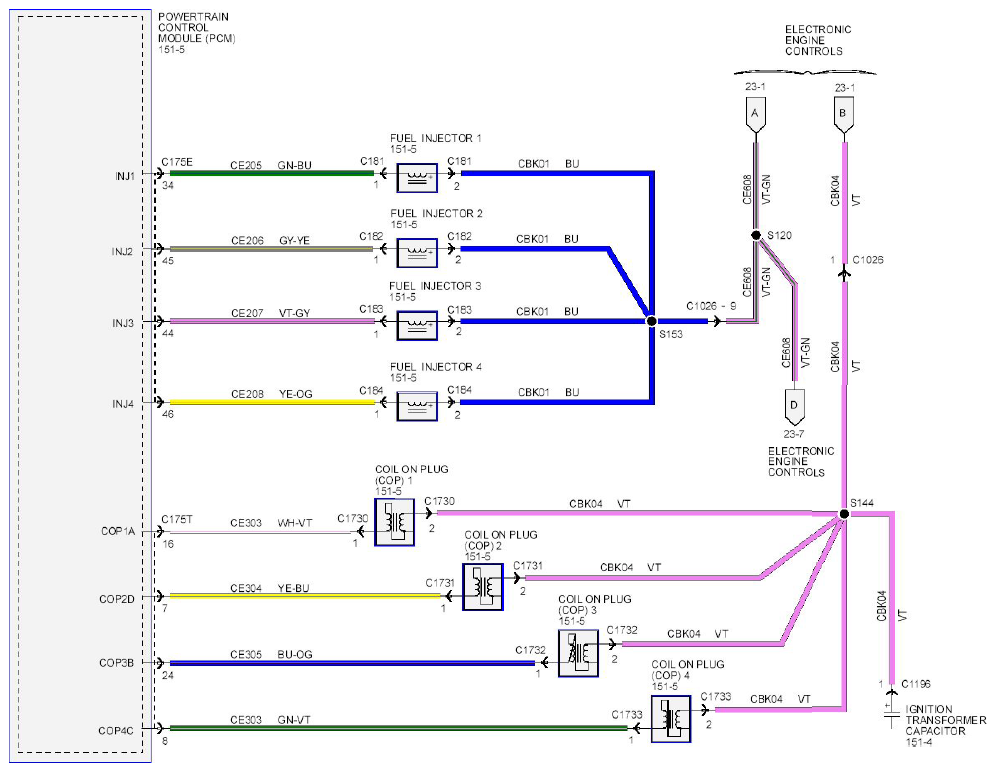

Fig 6: Electronic Engine Controls Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR CO.

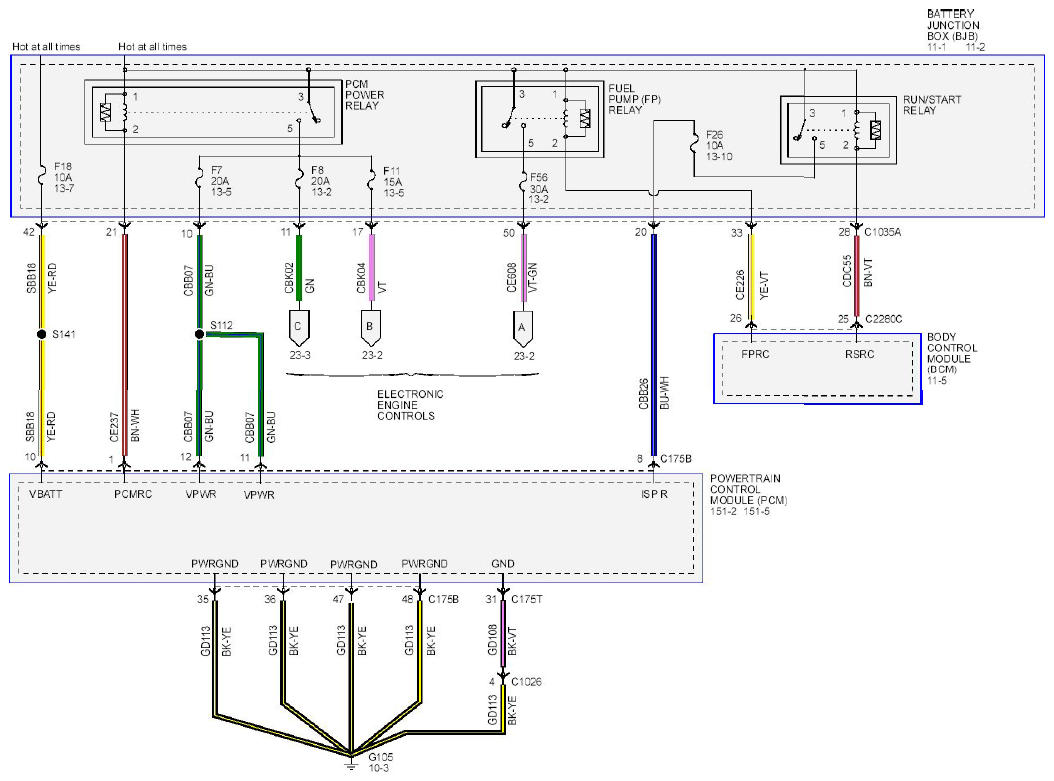

Fig 7: Electronic Engine Controls Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR CO.

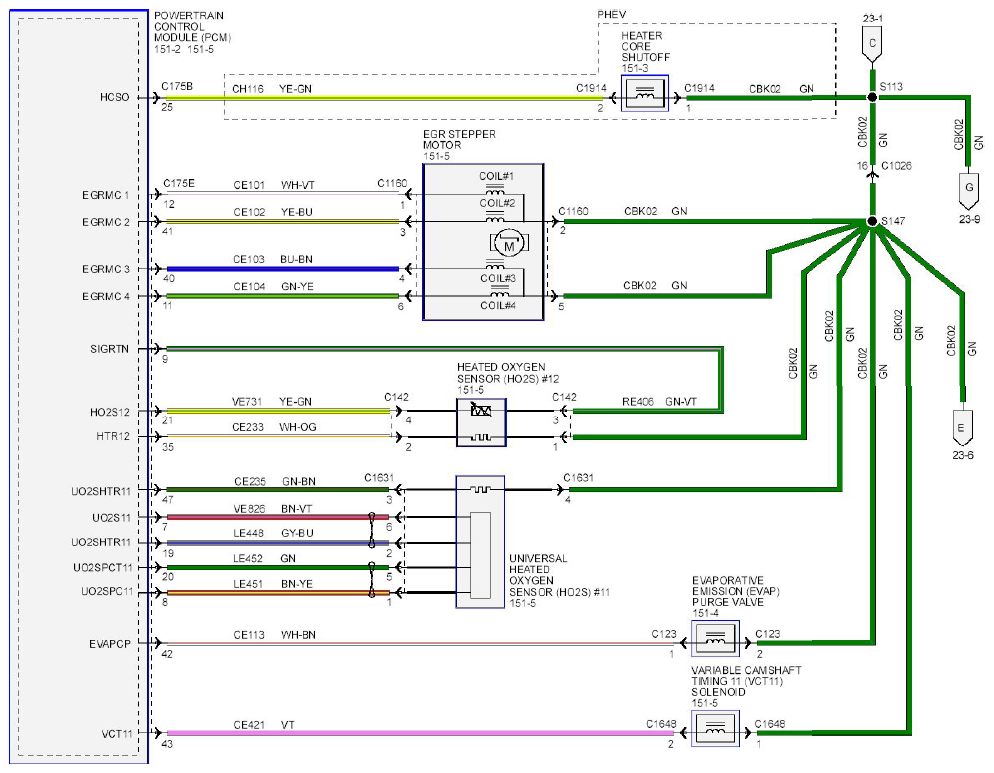

Fig 8: Electronic Engine Controls Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR CO.
