Cruise Control: Notes

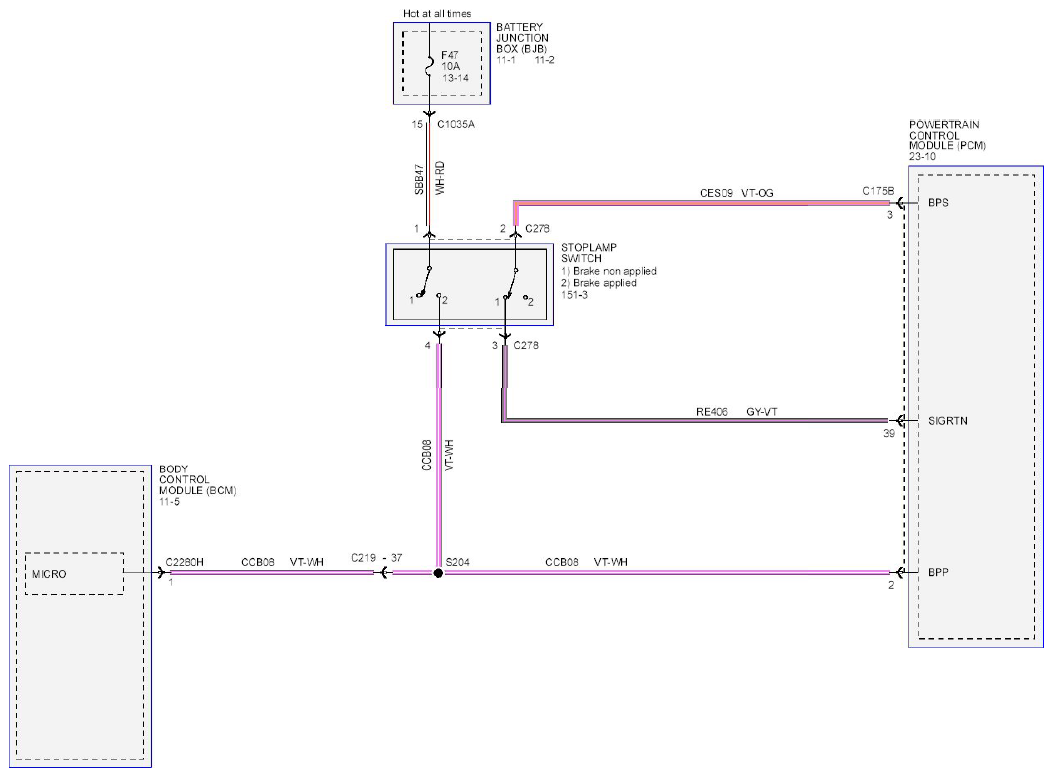

Fig 1: Cruise Control Wiring Diagram (1 Of 3)
G08754142Courtesy of FORD MOTOR CO.

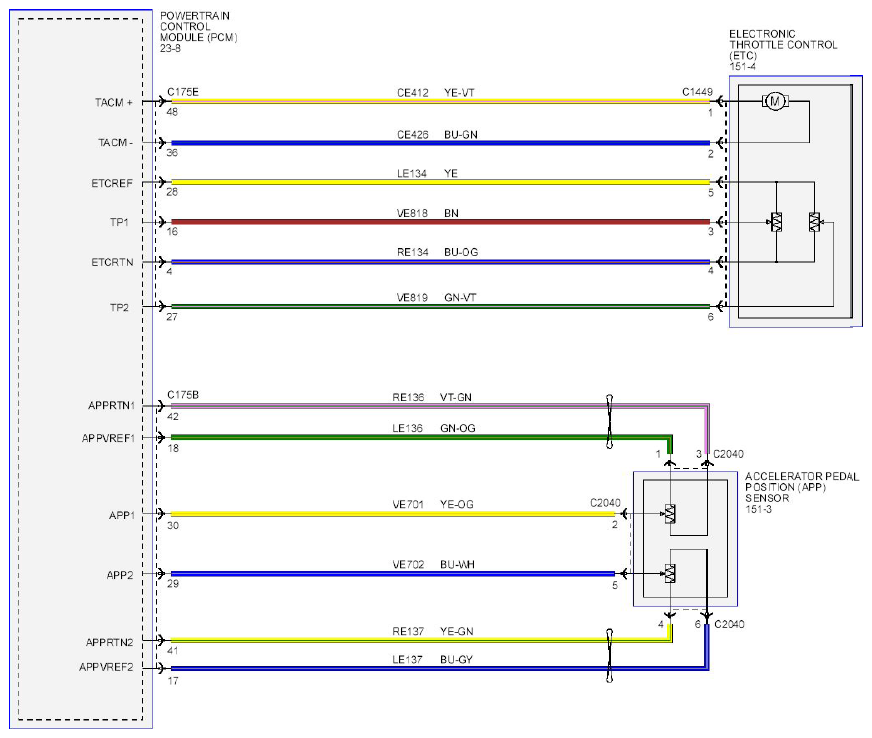

Fig 2: Cruise Control Wiring Diagram (2 Of 3)
G08754143Courtesy of FORD MOTOR CO.

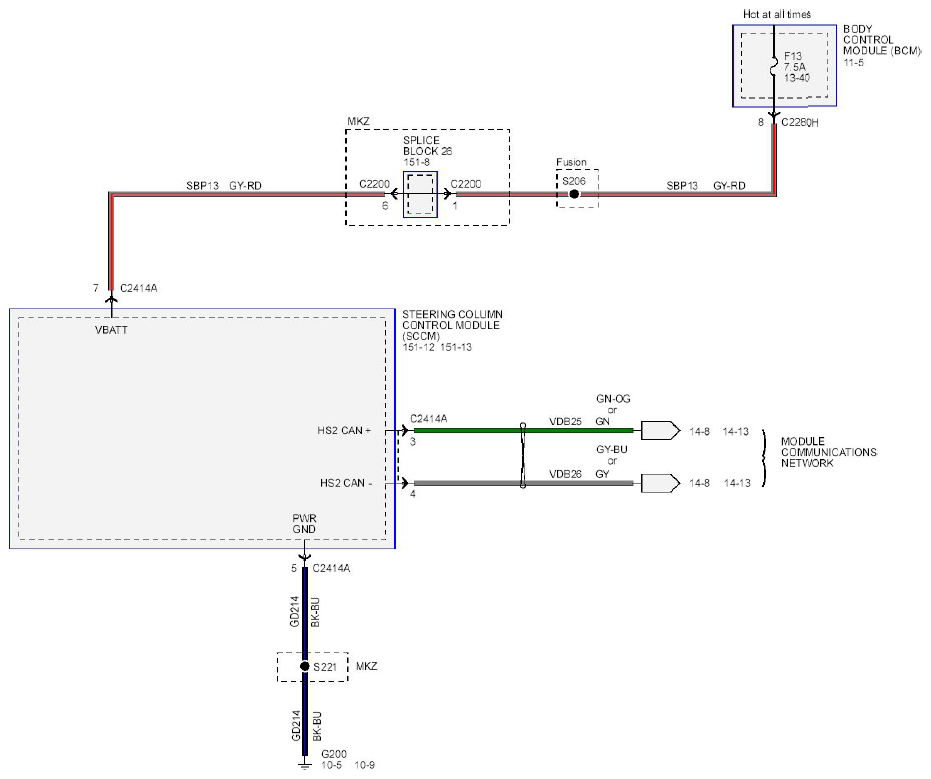

Fig 3: Cruise Control Wiring Diagram (3 Of 3)
G08754144Courtesy of FORD MOTOR CO.
