Fusion Adaptive Cruise

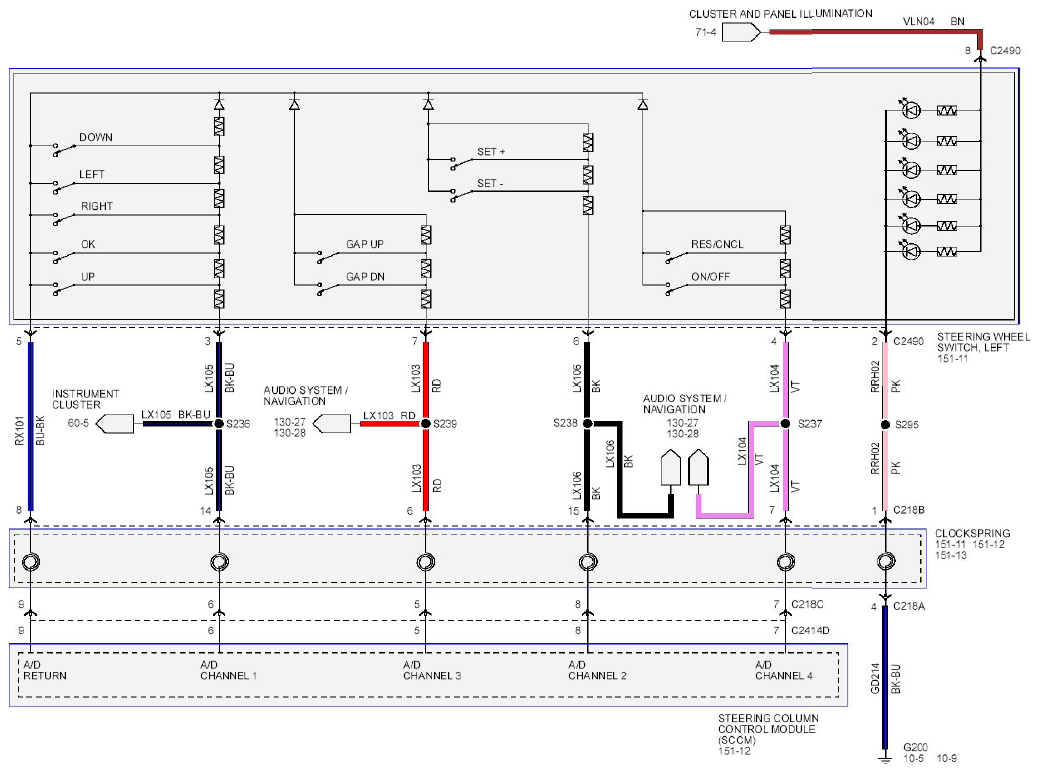

Fig 1: Cruise Control Wiring Diagram - Fusion, Adaptive Cruise

G08754145

Courtesy of FORD MOTOR CO.
