Heated Seats

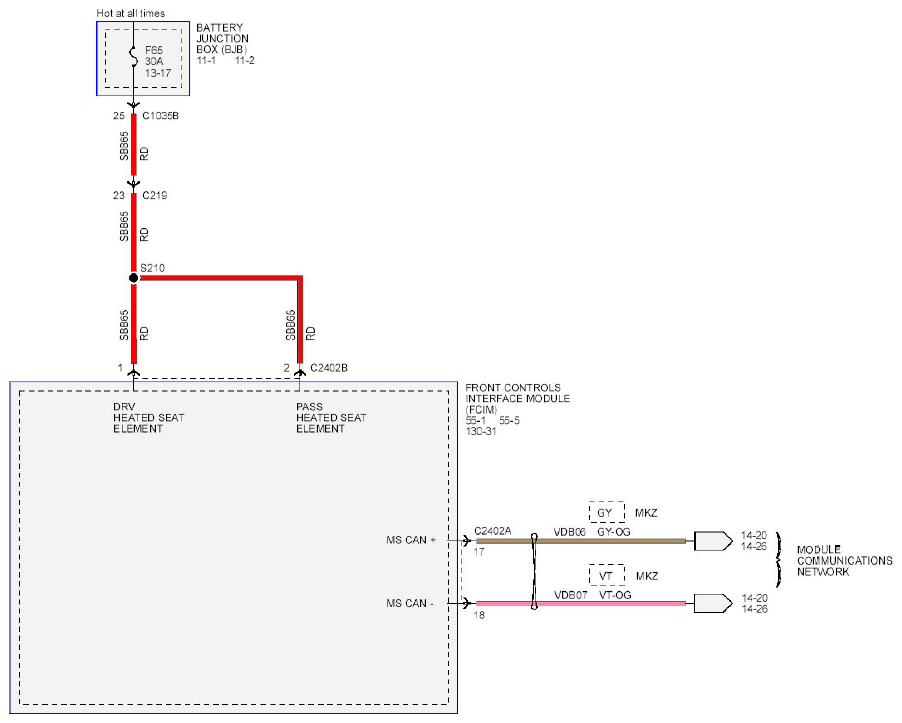

Fig 1: Climate Controlled Seats Wiring Diagram - Heated Seats (1 Of 3)
G08754261Courtesy of FORD MOTOR CO.

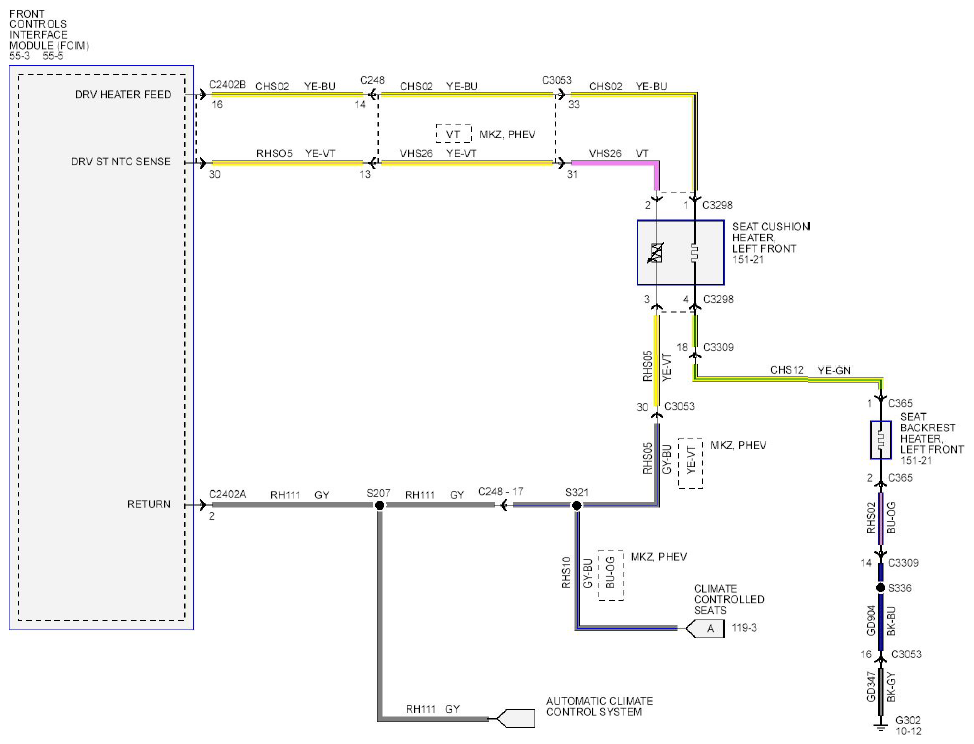

Fig 2: Climate Controlled Seats Wiring Diagram - Heated Seats (2 Of 3)
G08754262Courtesy of FORD MOTOR CO.

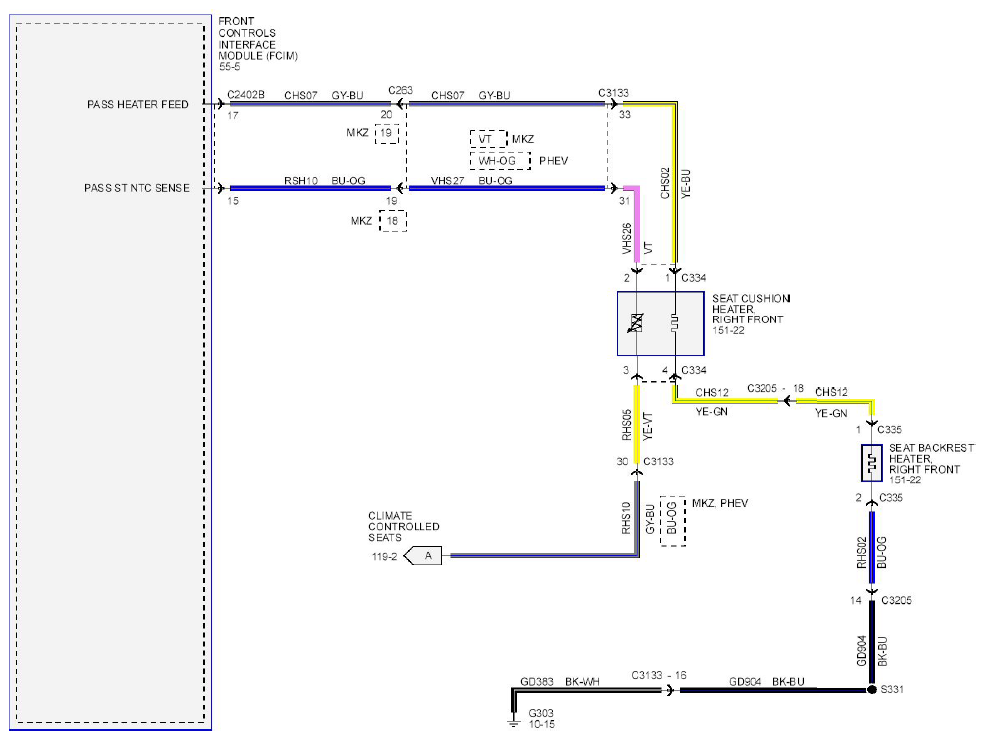

Fig 3: Climate Controlled Seats Wiring Diagram - Heated Seats (3 Of 3)
G08754263Courtesy of FORD MOTOR CO.
