Charging System: Notes

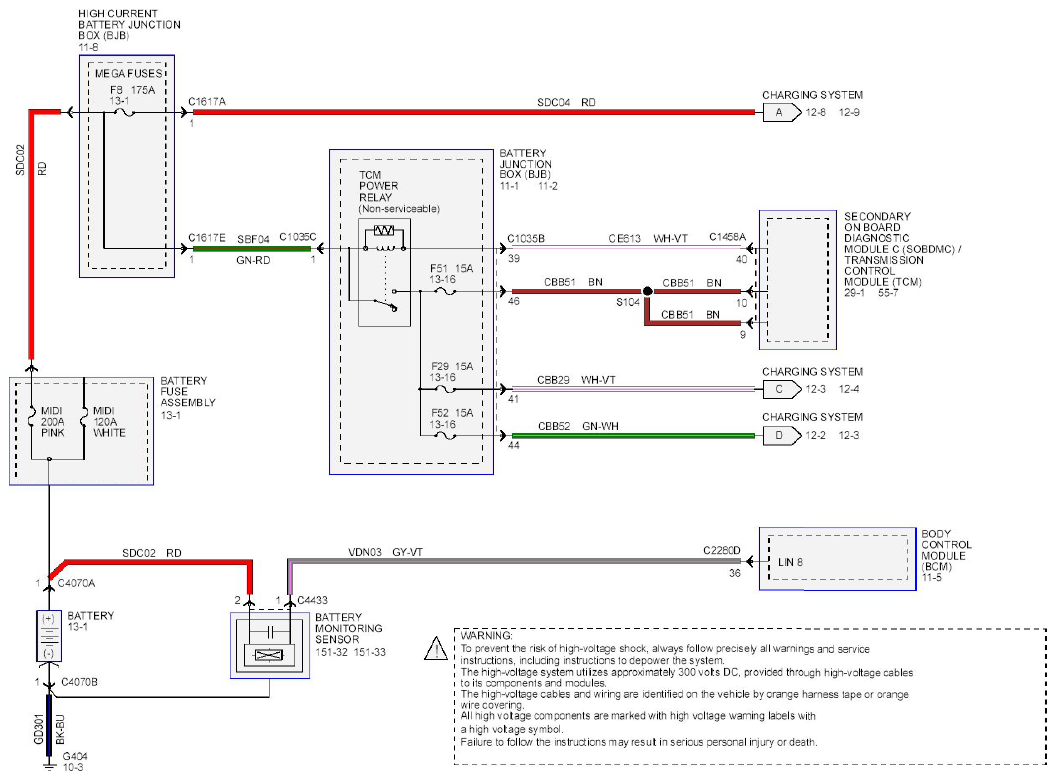

Fig 1: Charging System Wiring Diagram (1 Of 3)
G08754026Courtesy of FORD MOTOR CO.

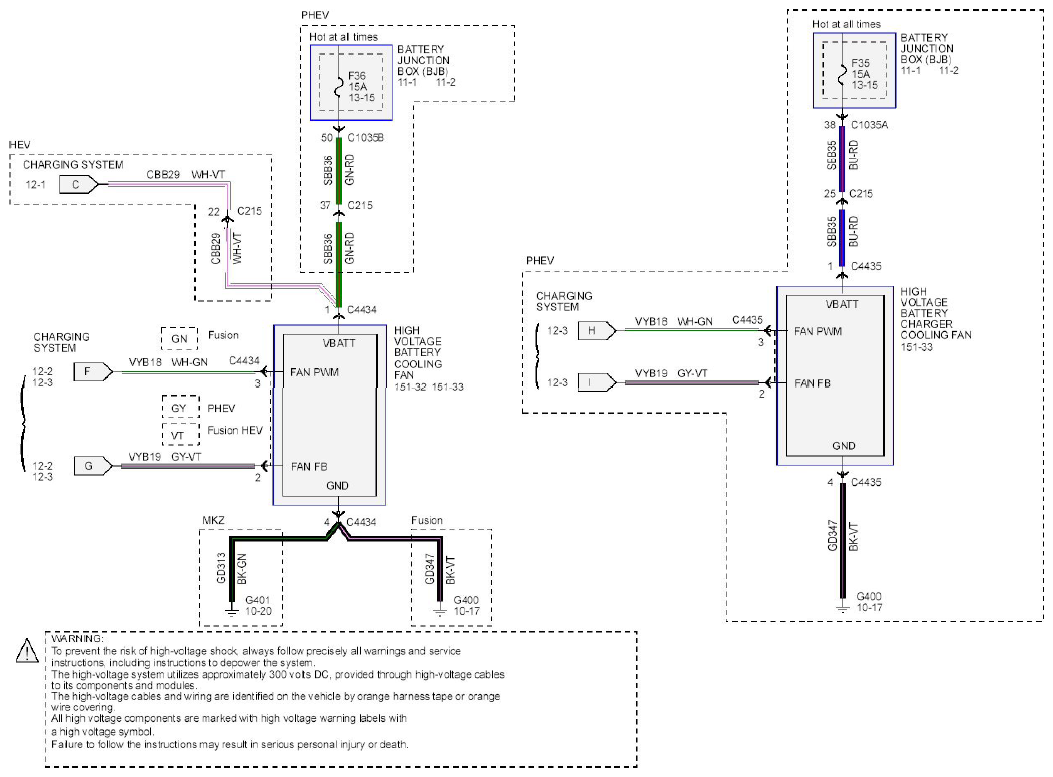

Fig 2: Charging System Wiring Diagram - (2 Of 3)
G08754029Courtesy of FORD MOTOR CO.

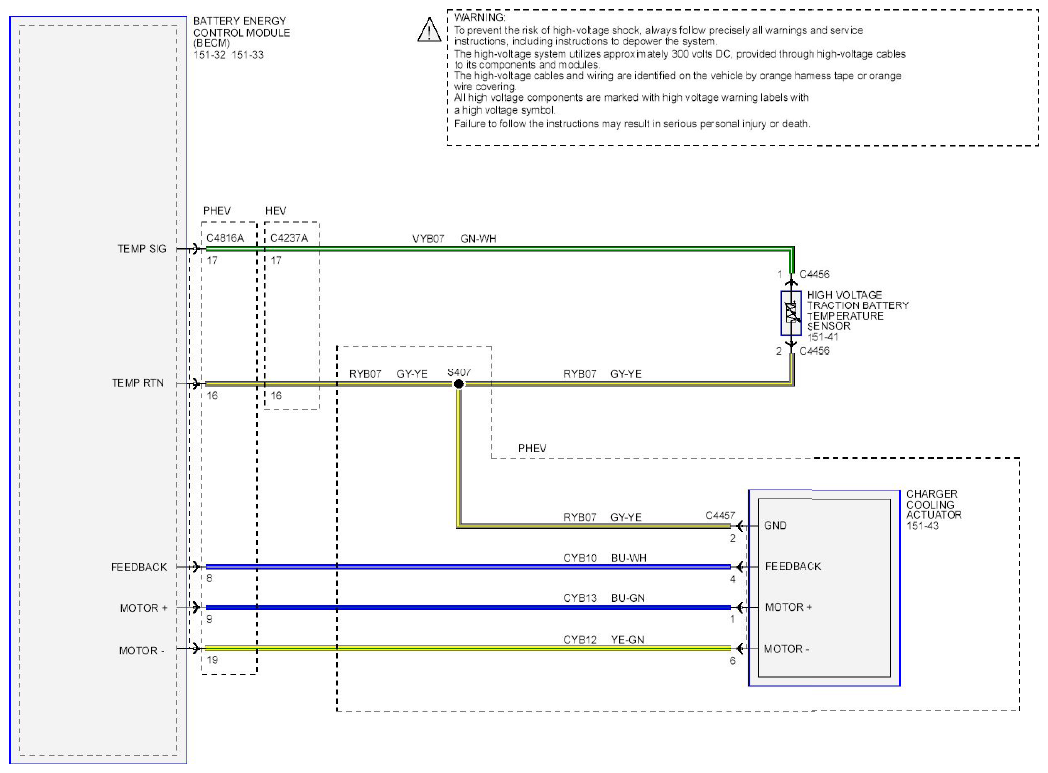

Fig 3: Charging System Wiring Diagram - (3 Of 3)
G08754035Courtesy of FORD MOTOR CO.
