Charging System: HEV

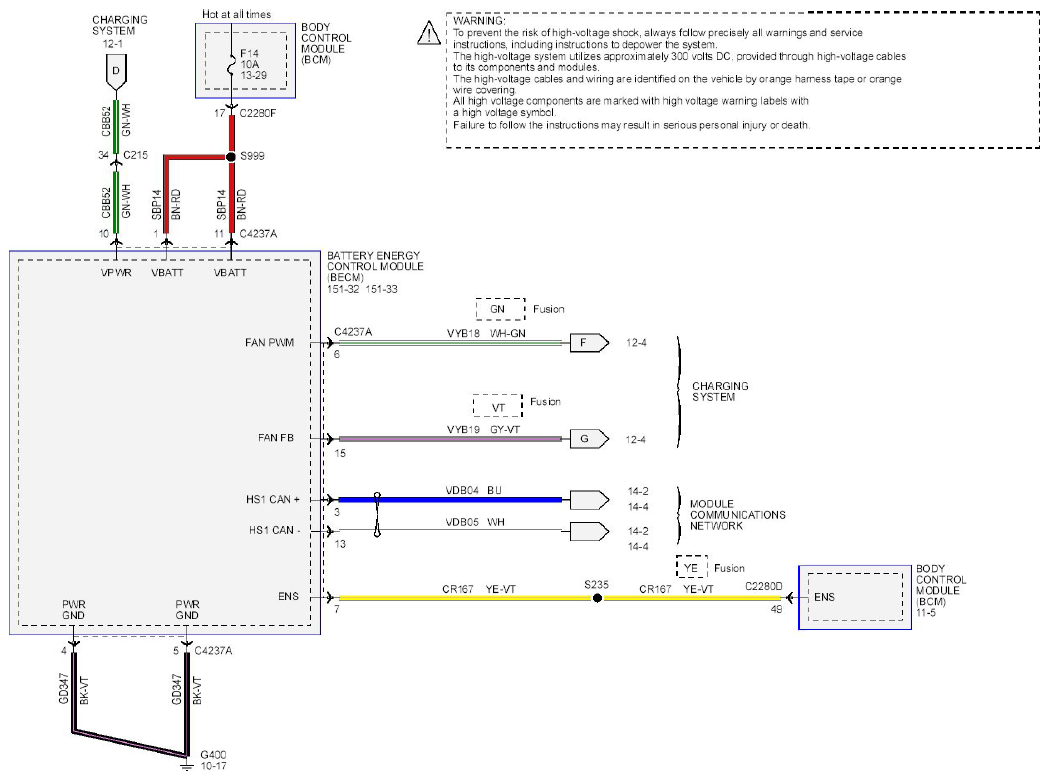

Fig 1: Charging System Wiring Diagram - HEV (1 Of 4)
G08754027Courtesy of FORD MOTOR CO.

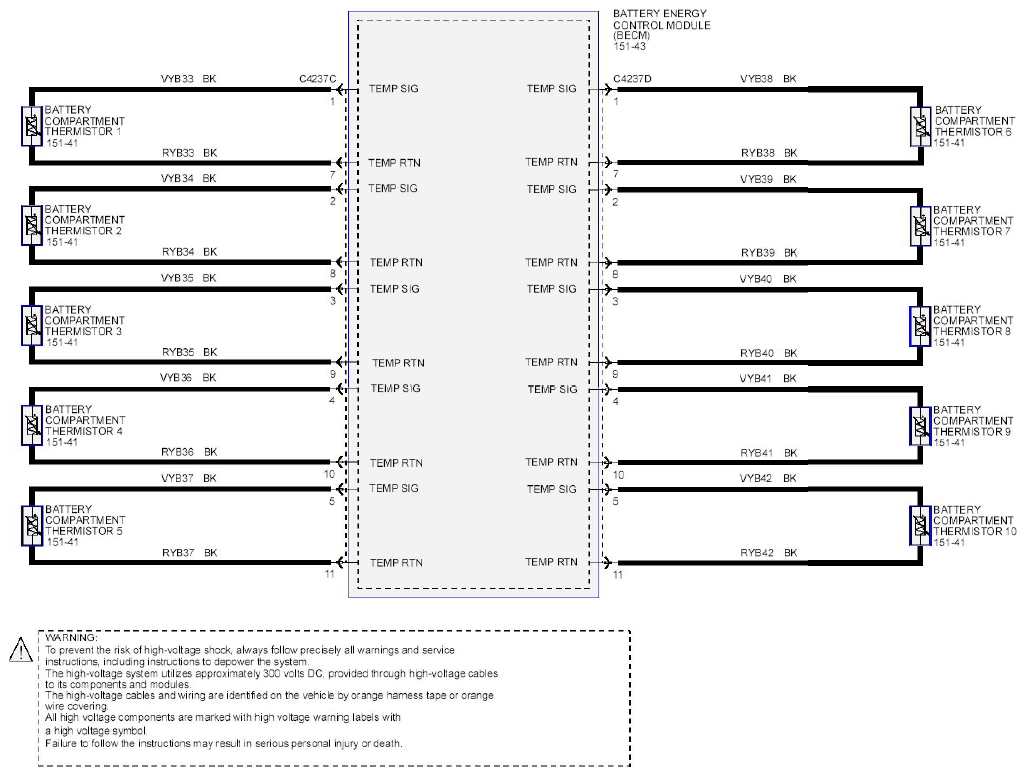

Fig 2: Charging System Wiring Diagram - HEV (2 Of 4)
G08754030Courtesy of FORD MOTOR CO.

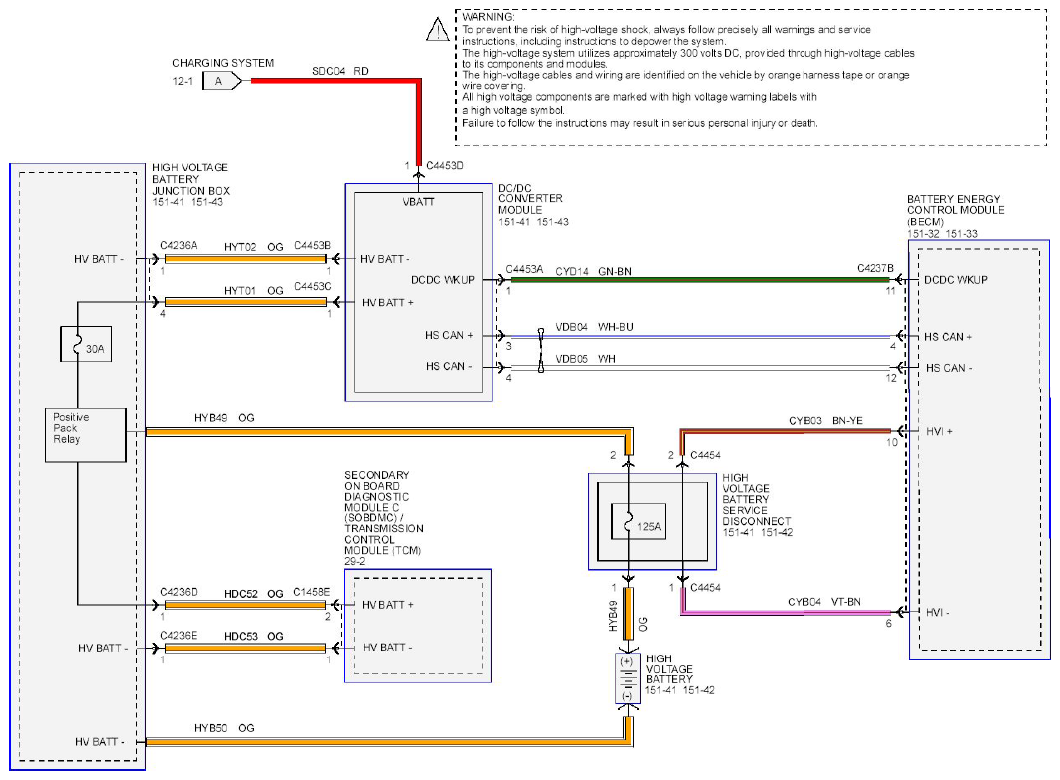

Fig 3: Charging System Wiring Diagram - HEV (3 Of 4)
G08754034Courtesy of FORD MOTOR CO.

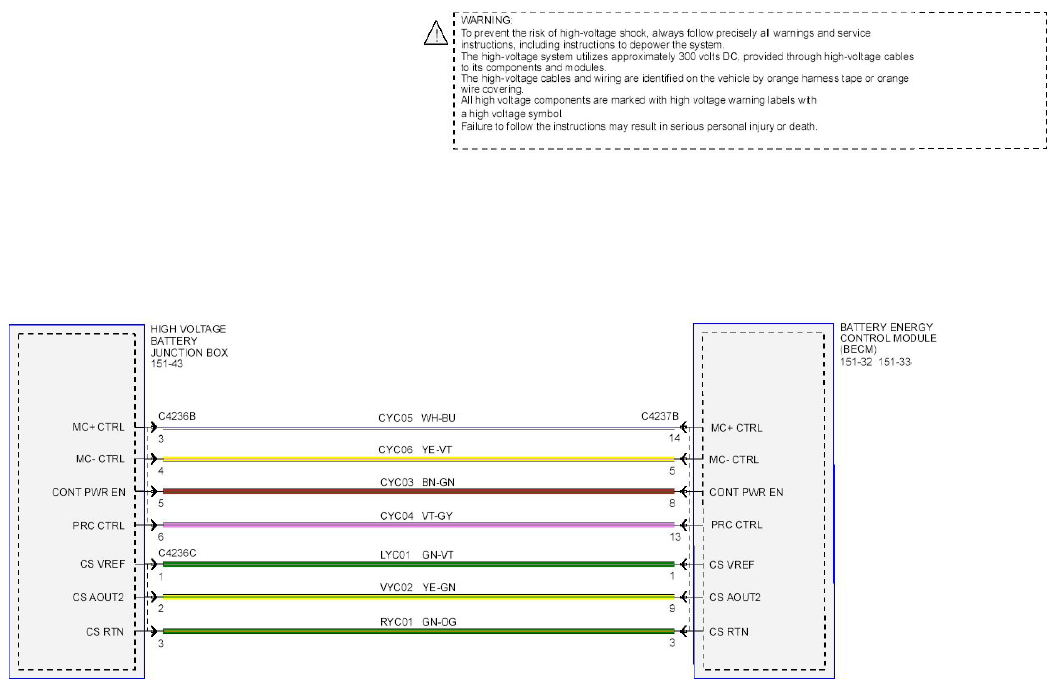

Fig 4: Charging System Wiring Diagram - HEV (4 Of 4)
G08754037Courtesy of FORD MOTOR CO.
