Automatic Climate Control System: PHEV

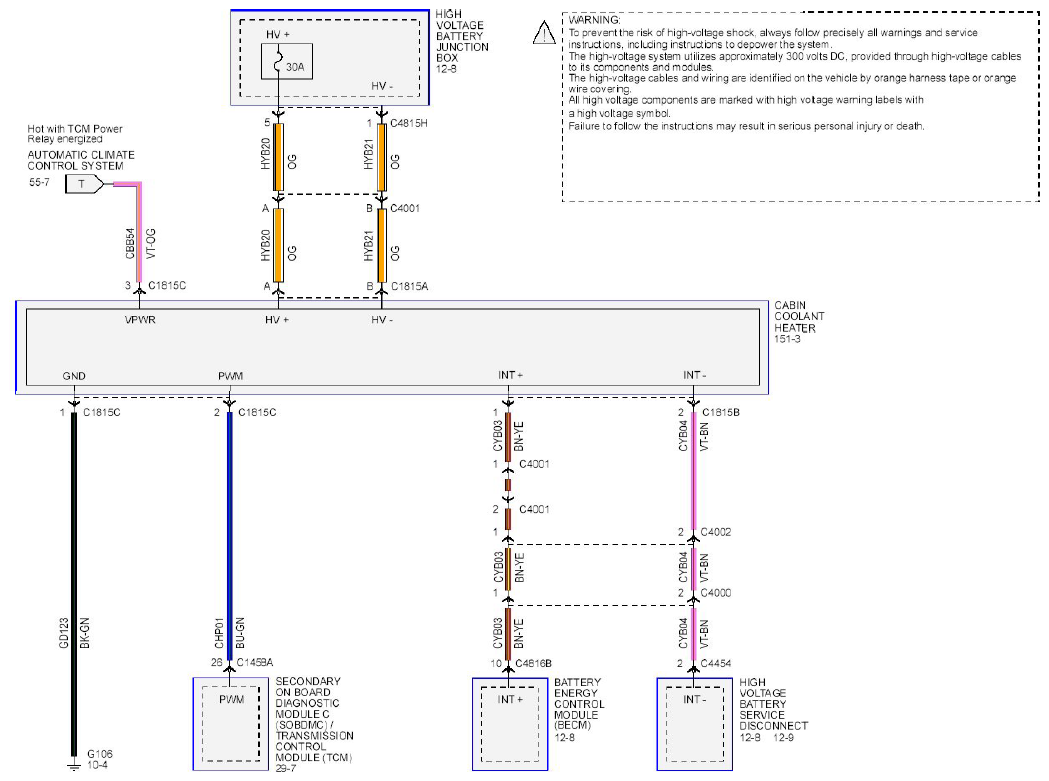

Fig 1: Automatic Climate Control System Wiring Diagram - PHEV (1 Of 2)
G08754183Courtesy of FORD MOTOR CO.

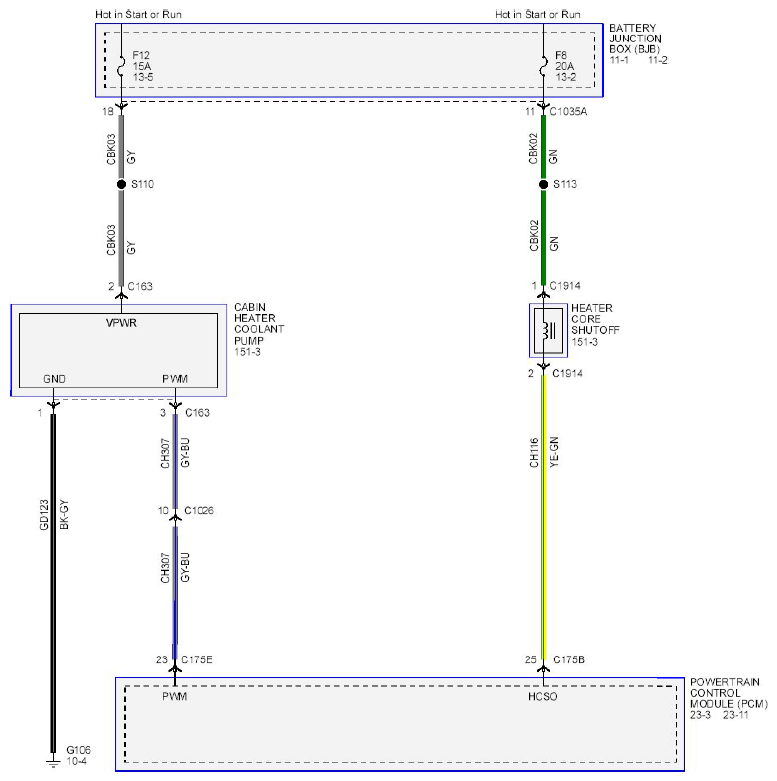

Fig 2: Automatic Climate Control System Wiring Diagram - PHEV (2 Of 2)
G08754184Courtesy of FORD MOTOR CO.
