THX® Audio

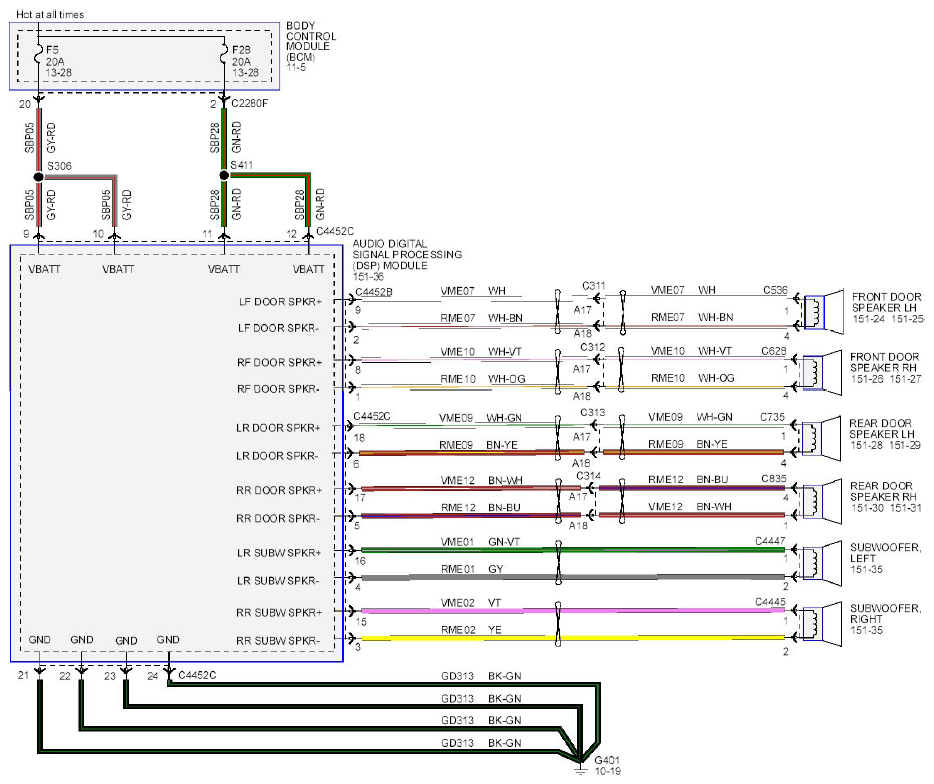

Fig 1: Audio System_Navigation Wiring Diagram - THX® Audio (1 Of 4)
G08754305Courtesy of FORD MOTOR CO.

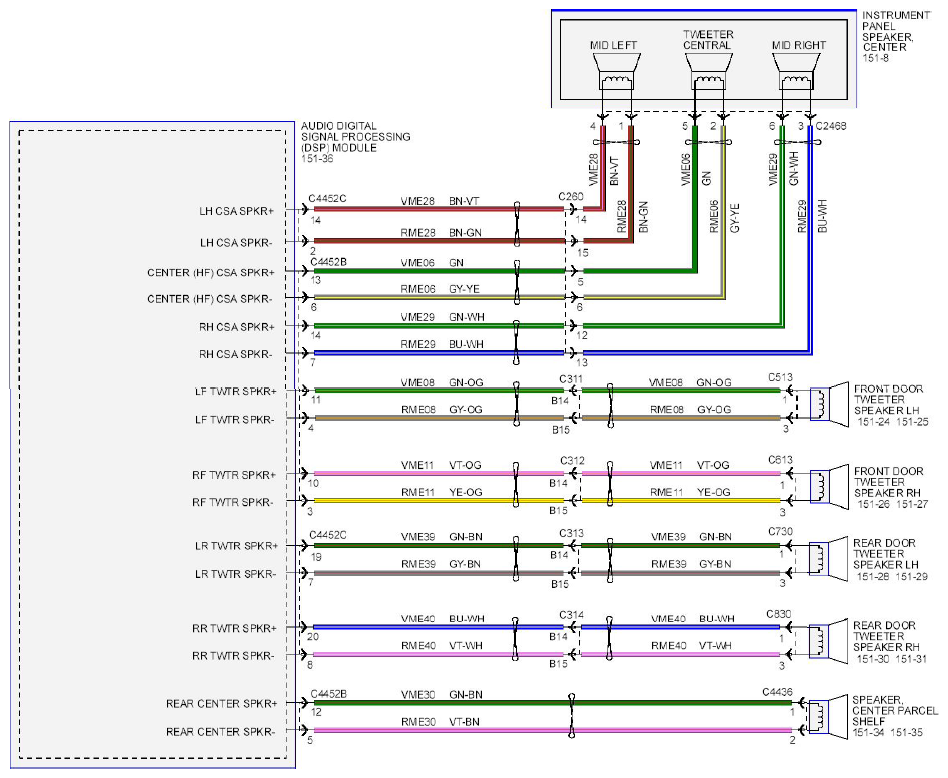

Fig 2: Audio System_Navigation Wiring Diagram - THX® Audio (2 Of 4)
G08754306Courtesy of FORD MOTOR CO.

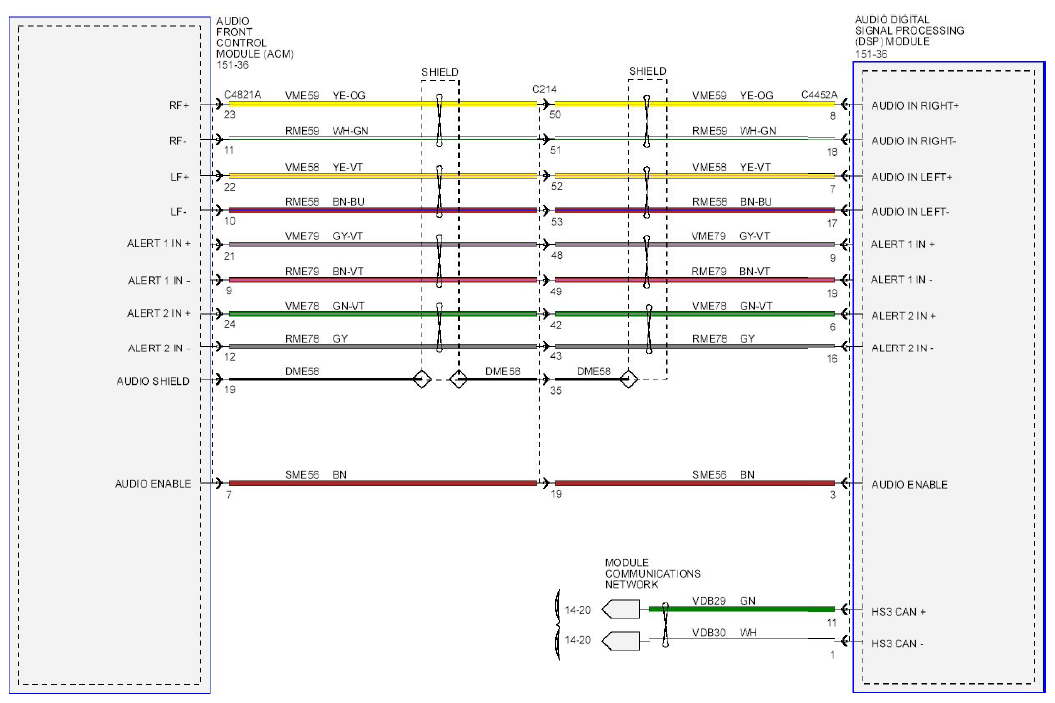

Fig 3: Audio System_Navigation Wiring Diagram - THX® Audio (3 Of 4)
G08754307Courtesy of FORD MOTOR CO.

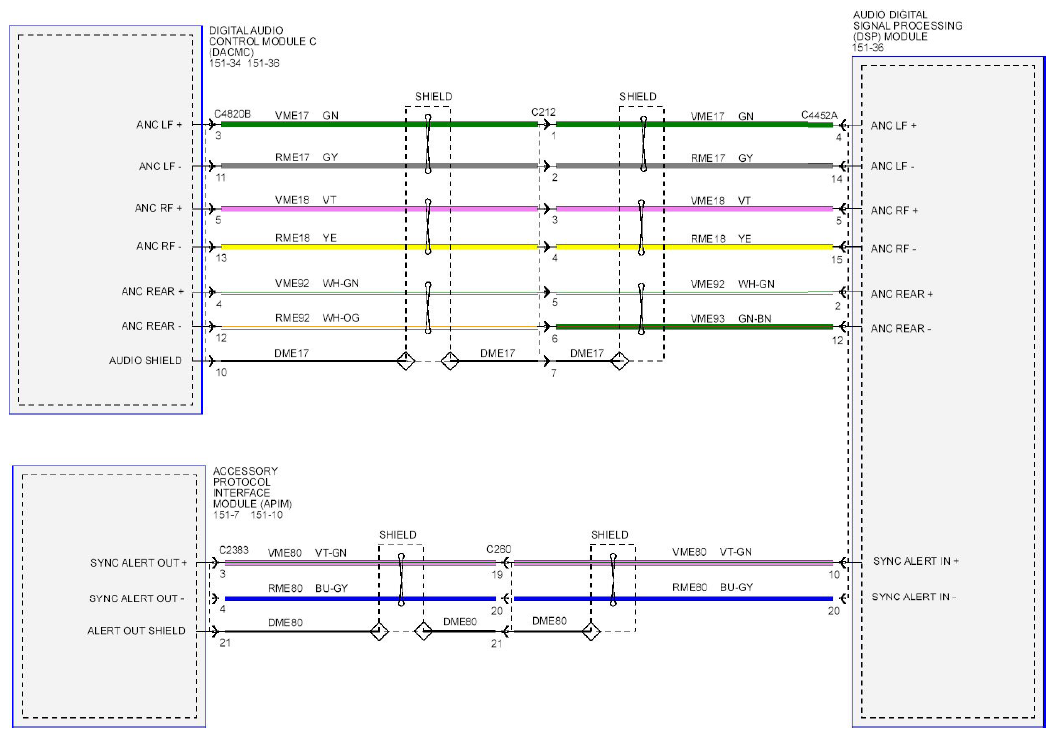

Fig 4: Audio System_Navigation Wiring Diagram - THX® Audio (4 Of 4)
G08754308Courtesy of FORD MOTOR CO.
