Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Audio System_Navigation
>>
SONY® Audio
SONY® Audio

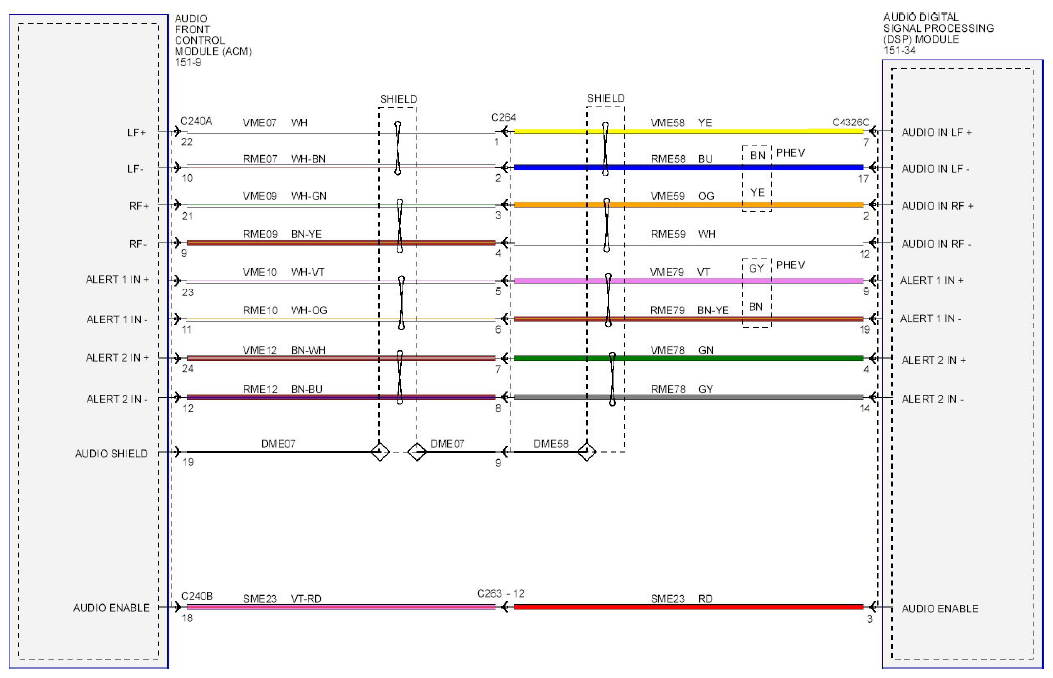

Fig 1: Audio System_Navigation Wiring Diagram - SONY® Audio (1 Of 4)
Courtesy of FORD MOTOR CO.

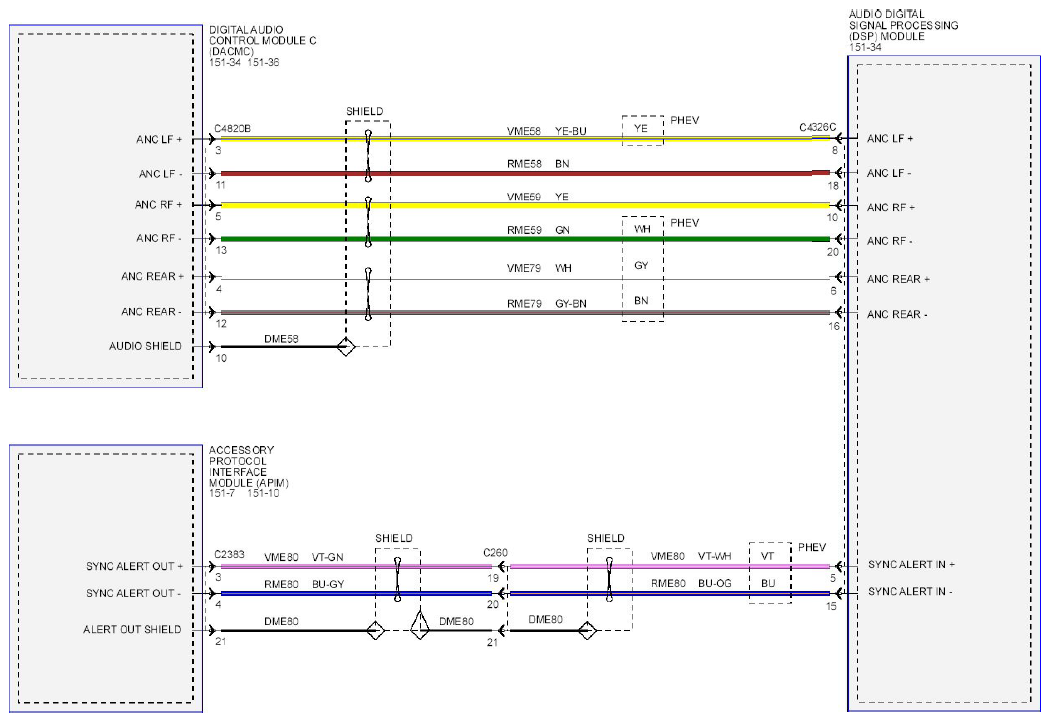

Fig 2: Audio System_Navigation Wiring Diagram - SONY® Audio (2 Of 4)
Courtesy of FORD MOTOR CO.

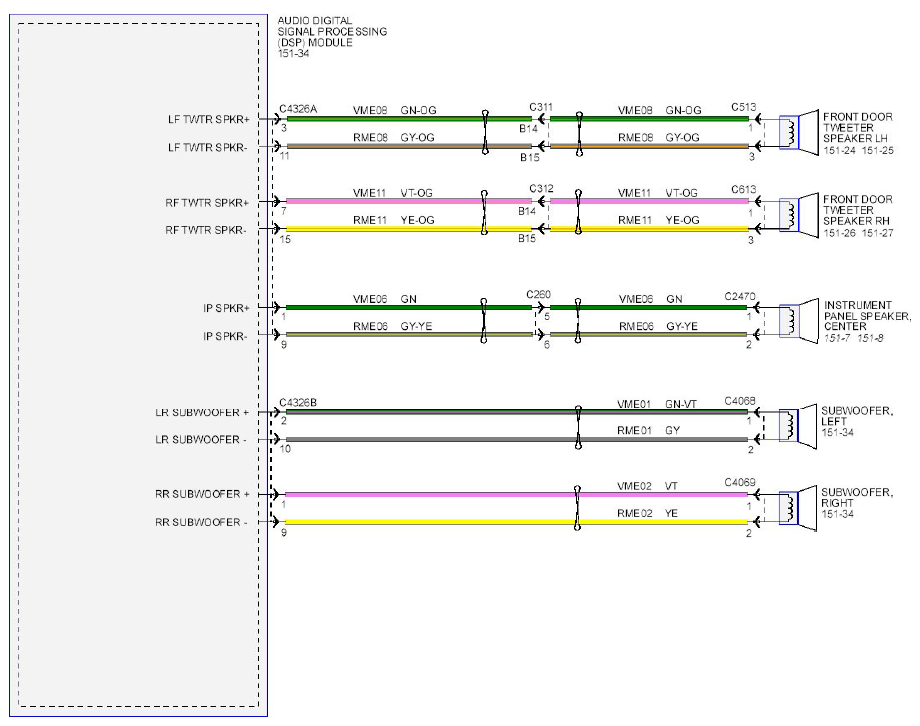

Fig 3: Audio System_Navigation Wiring Diagram - SONY® Audio (3 Of 4)
Courtesy of FORD MOTOR CO.

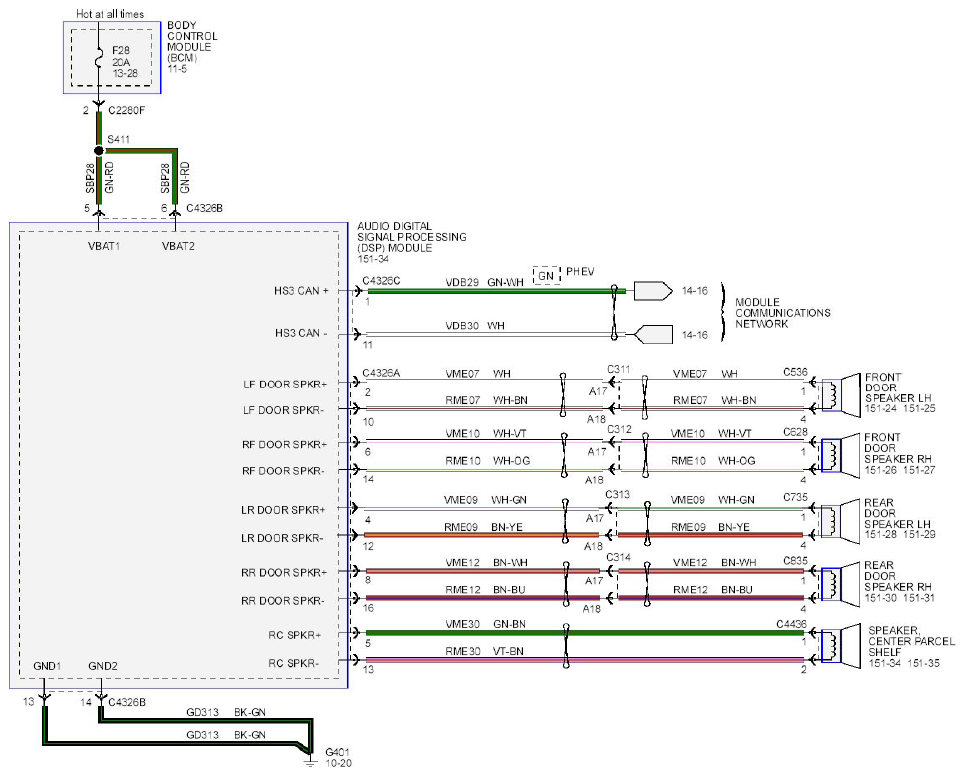

Fig 4: Audio System_Navigation Wiring Diagram - SONY® Audio (4 Of 4)
Courtesy of FORD MOTOR CO.
