Audio System_Navigation: Notes

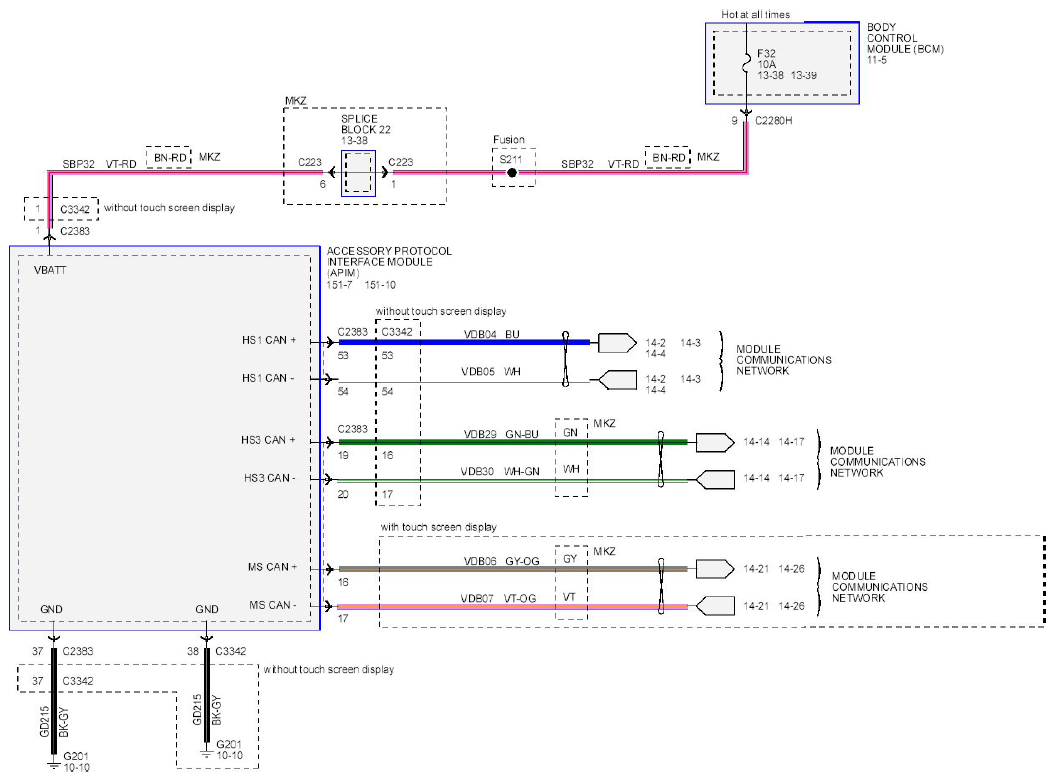

Fig 1: Audio System_Navigation Wiring Diagram - (1 Of 3)
G08754290Courtesy of FORD MOTOR CO.

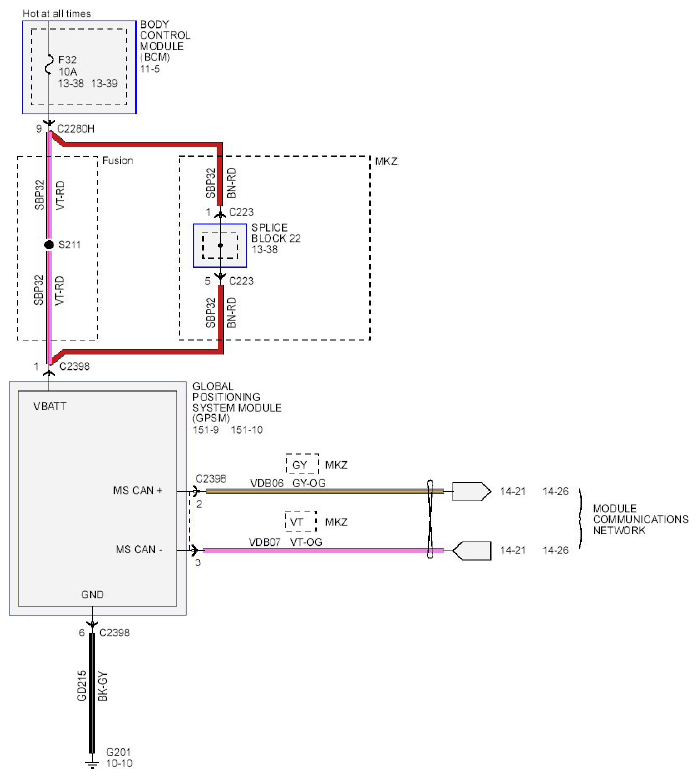

Fig 2: Audio System_Navigation Wiring Diagram - (2 Of 3)
G08754313Courtesy of FORD MOTOR CO.

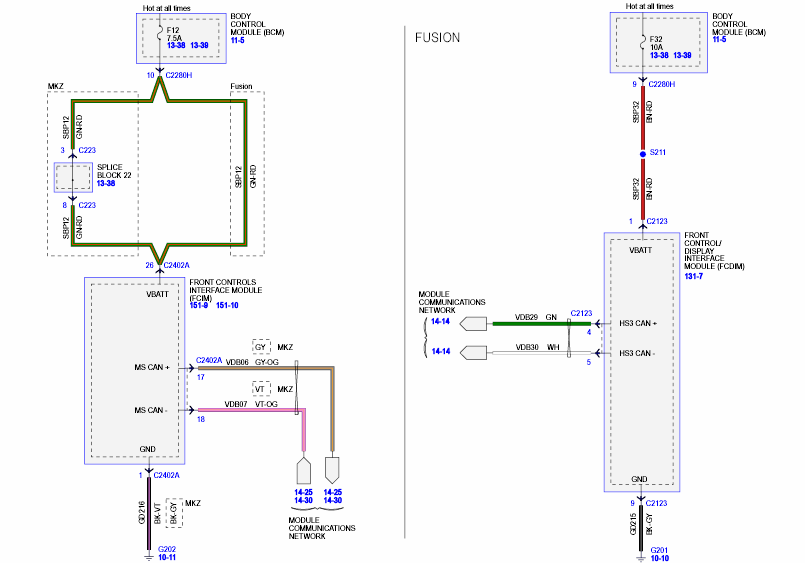

Fig 3: Audio System_Navigation Wiring Diagram - (3 Of 3)
G08754318Courtesy of FORD MOTOR CO.
