Audio System_Navigation
>>
Mid - Fusion
Mid - Fusion

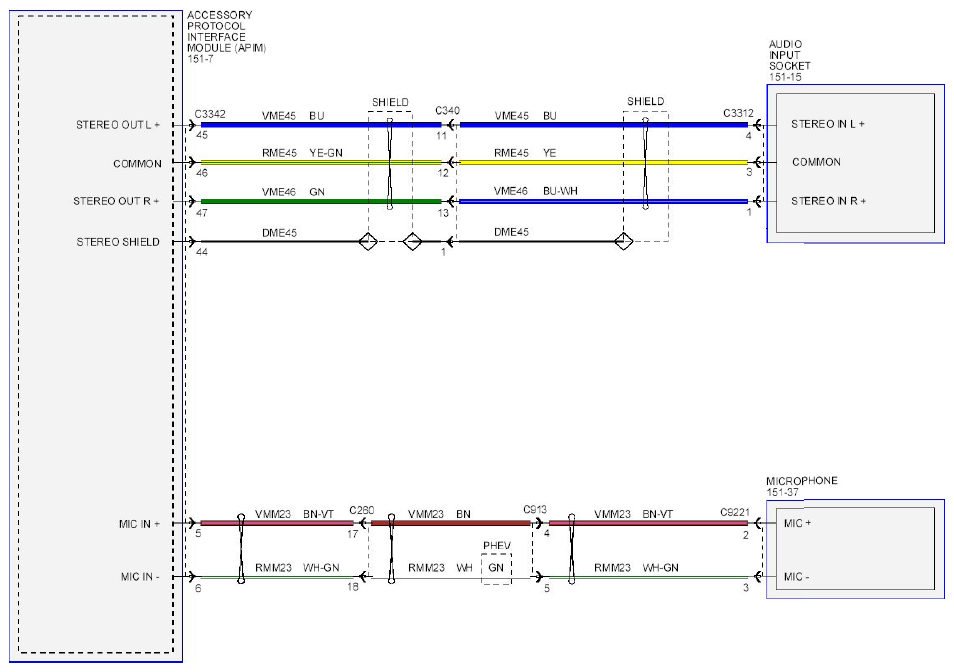

Fig 1: Audio System_Navigation Wiring Diagram - MID, Fusion (1 Of 4)
Courtesy of FORD MOTOR CO.

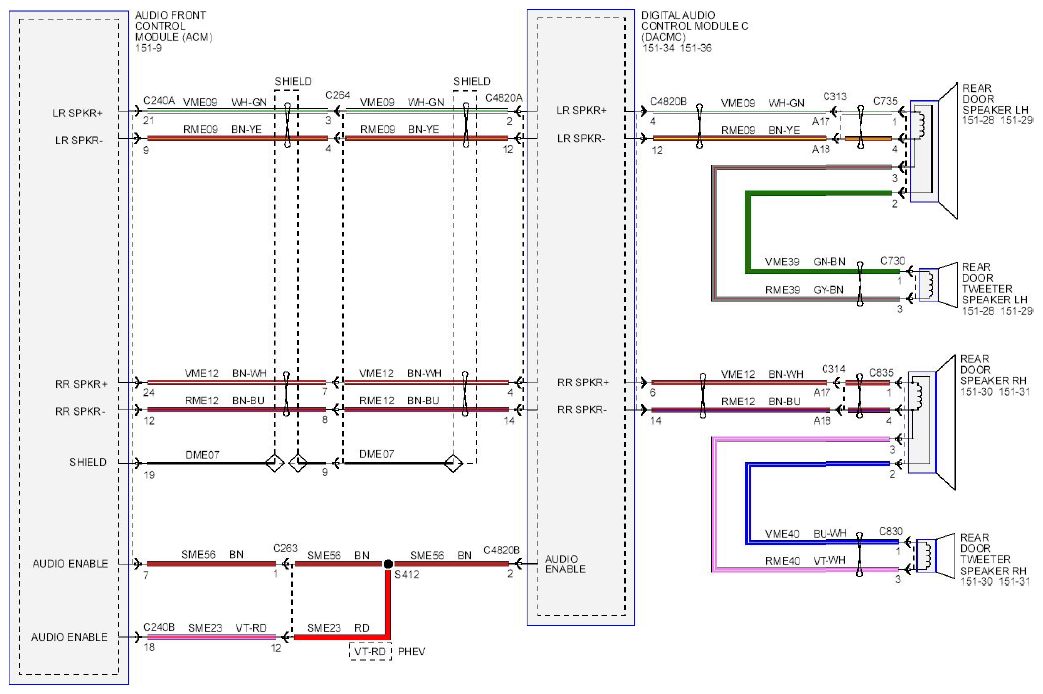

Fig 2: Audio System_Navigation Wiring Diagram - MID, Fusion (2 Of 4)
Courtesy of FORD MOTOR CO.

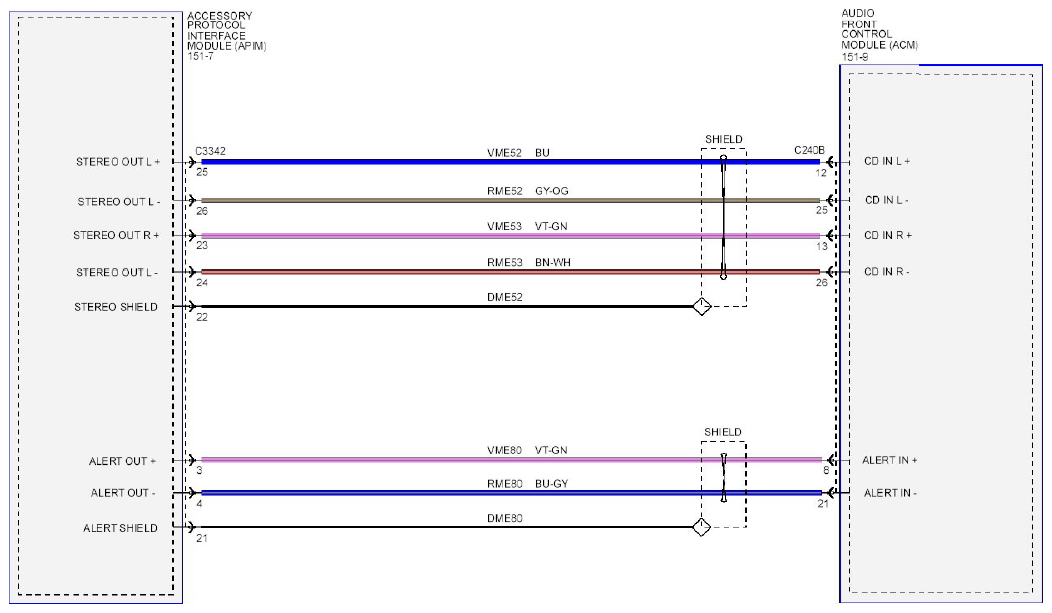

Fig 3: Audio System_Navigation Wiring Diagram - MID, Fusion (3 Of 4)
Courtesy of FORD MOTOR CO.

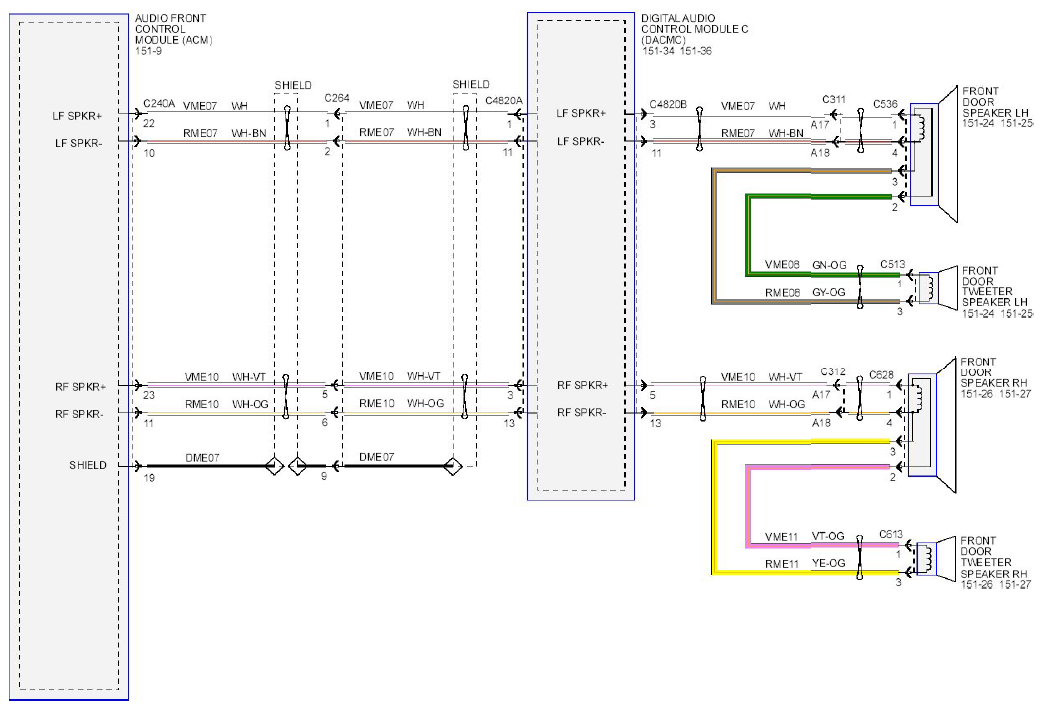

Fig 4: Audio System_Navigation Wiring Diagram - MID Fusion (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
