Audio System_Navigation: MKZ

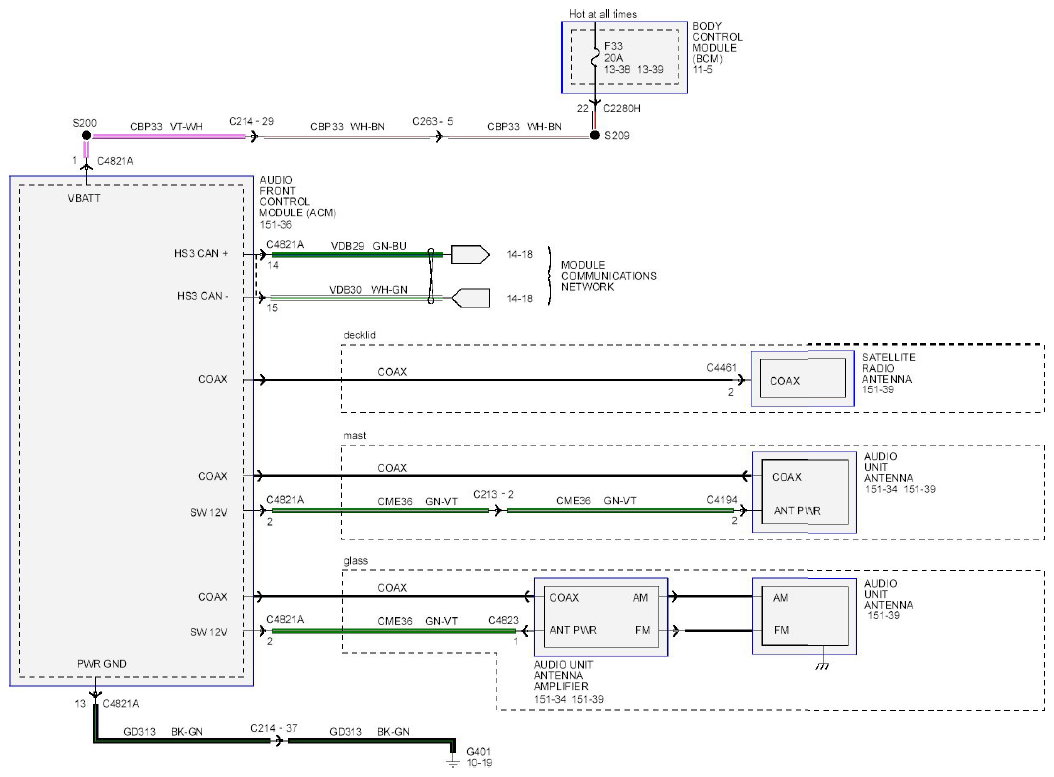

Fig 1: Audio System_Navigation Wiring Diagram - MKZ (1 Of 5)
Courtesy of FORD MOTOR CO.

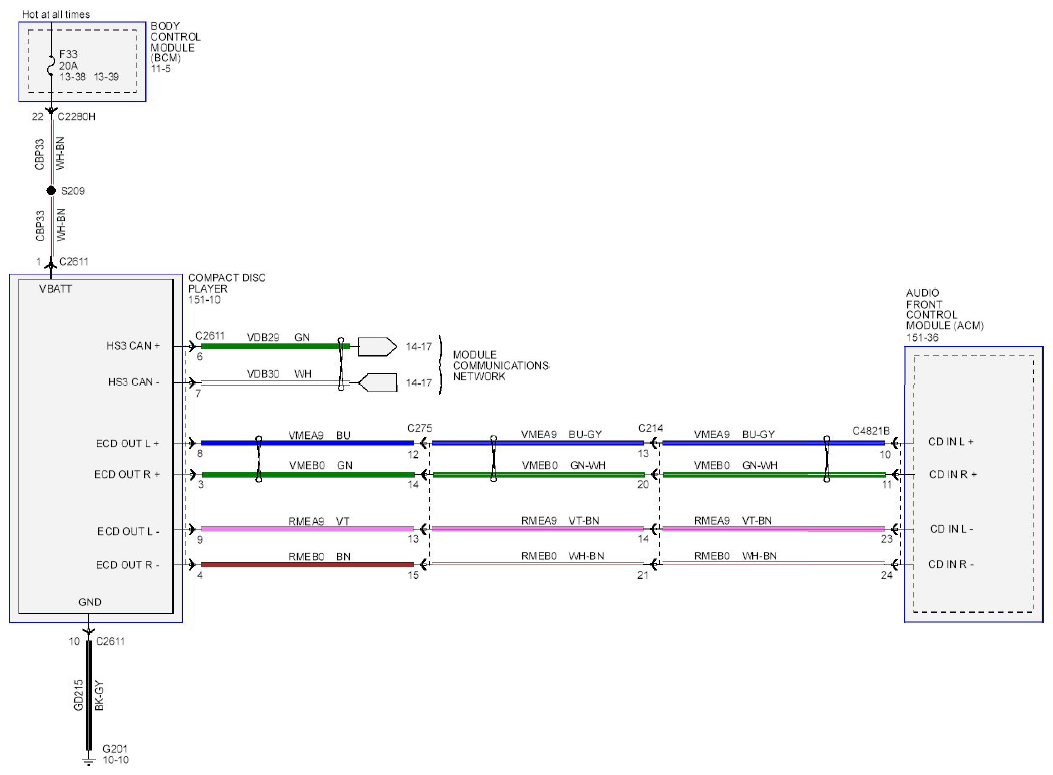

Fig 2: Audio System_Navigation Wiring Diagram - MKZ (2 Of 5)
Courtesy of FORD MOTOR CO.

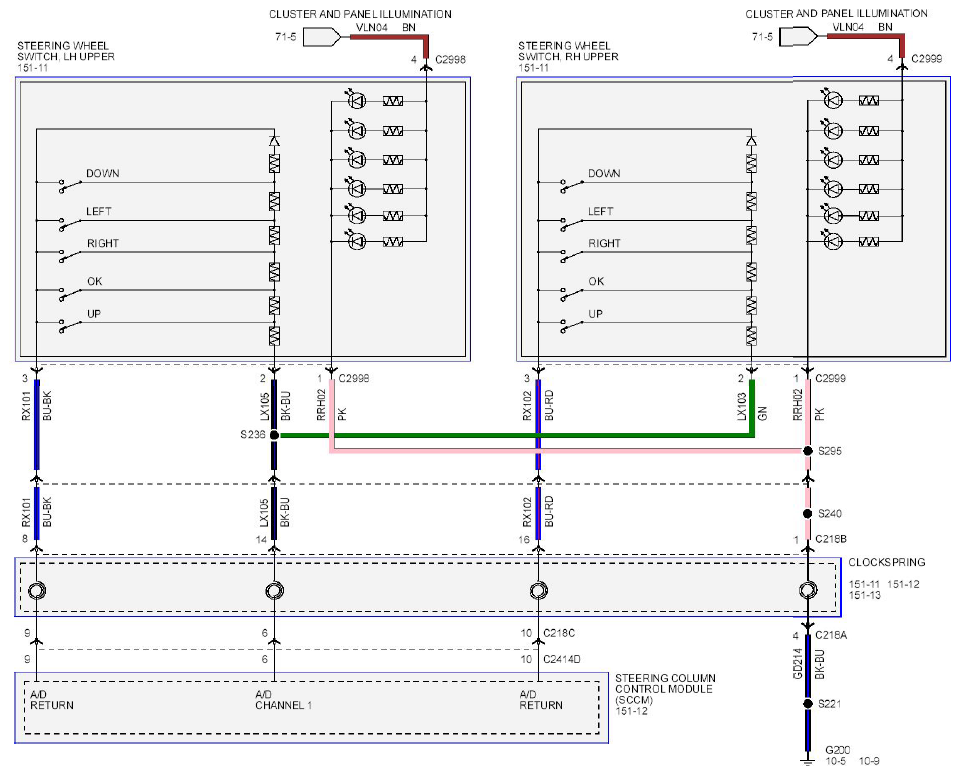

Fig 3: Audio System_Navigation Wiring Diagram - MKZ (3 Of 5)
Courtesy of FORD MOTOR CO.

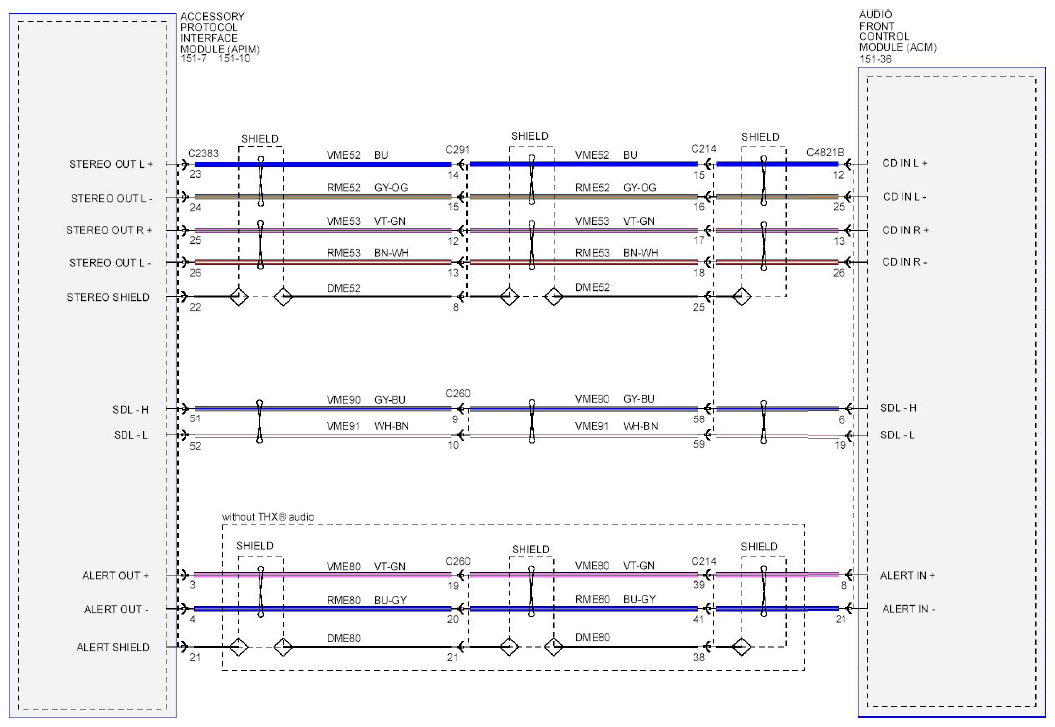

Fig 4: Audio System_Navigation Wiring Diagram - MKZ (4 Of 5)
Courtesy of FORD MOTOR CO.

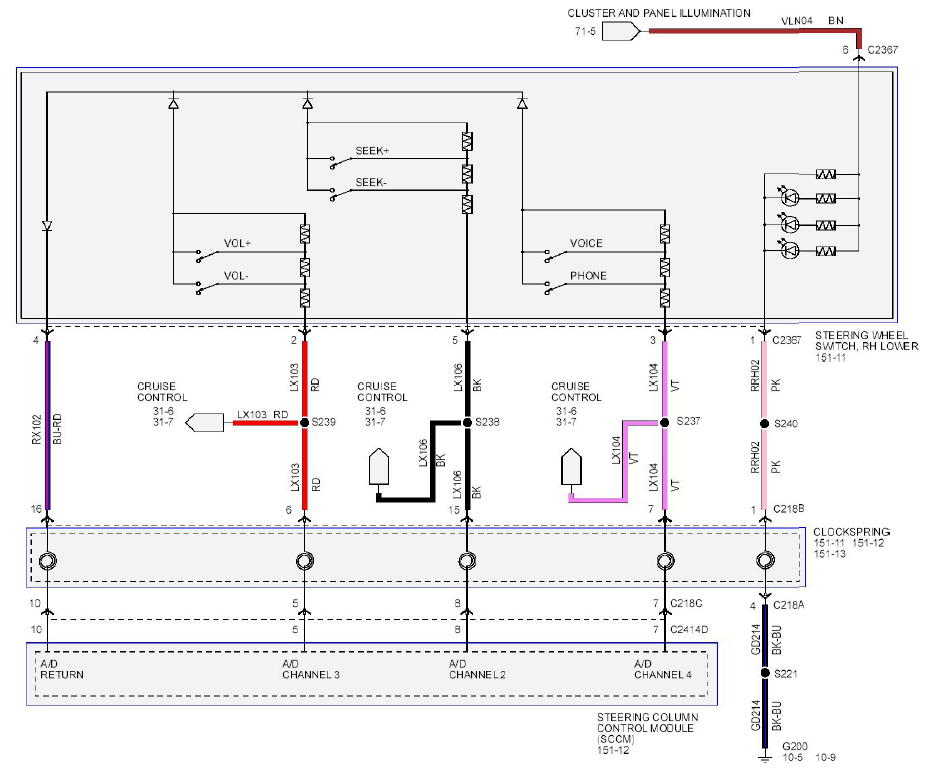

Fig 5: Audio System_Navigation Wiring Diagram - MKZ (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
