OEM Wiring Diagrams -- (Hybrid)
>>
Audio System_Navigation
>>
MKZ With ANC
MKZ With ANC

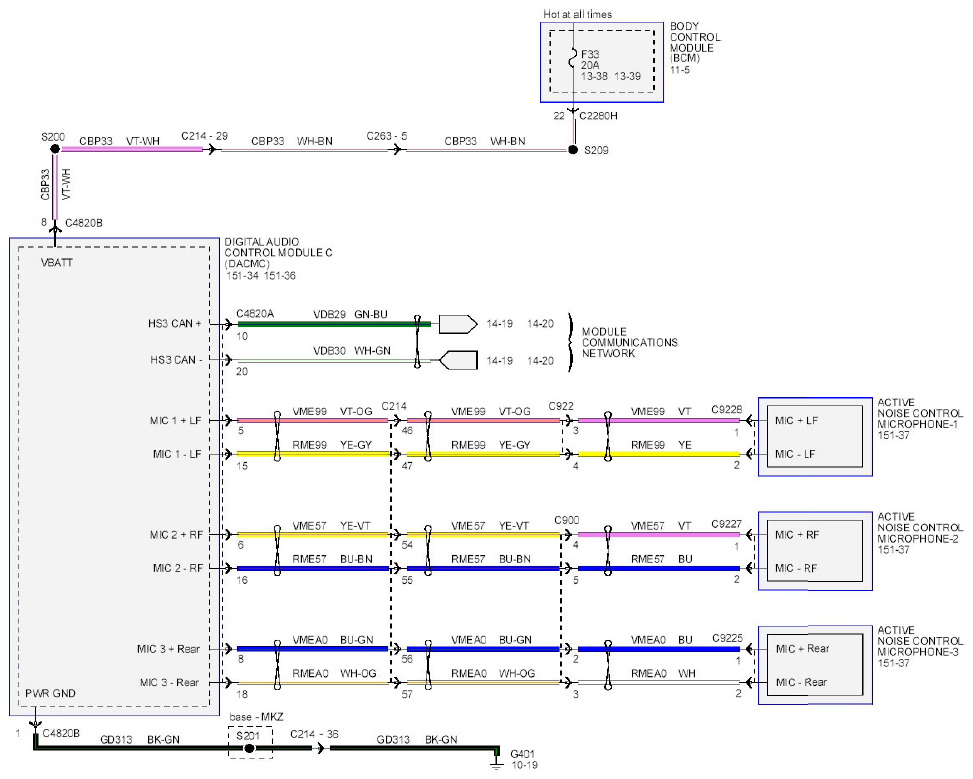

Fig 1: Audio System_Navigation Wiring Diagram - MKZ With ANC
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
