Audio System_Navigation
>>
Base - MKZ
Base - MKZ

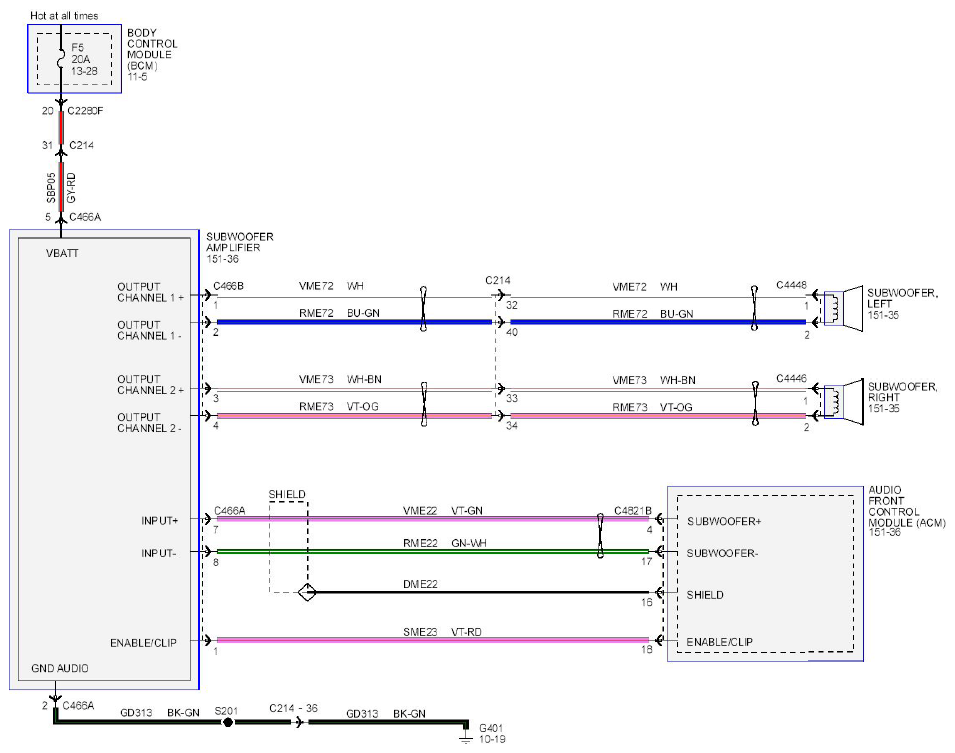

Fig 1: Audio System_Navigation Wiring Diagram - Base, MKZ (1 Of 3)
Courtesy of FORD MOTOR CO.

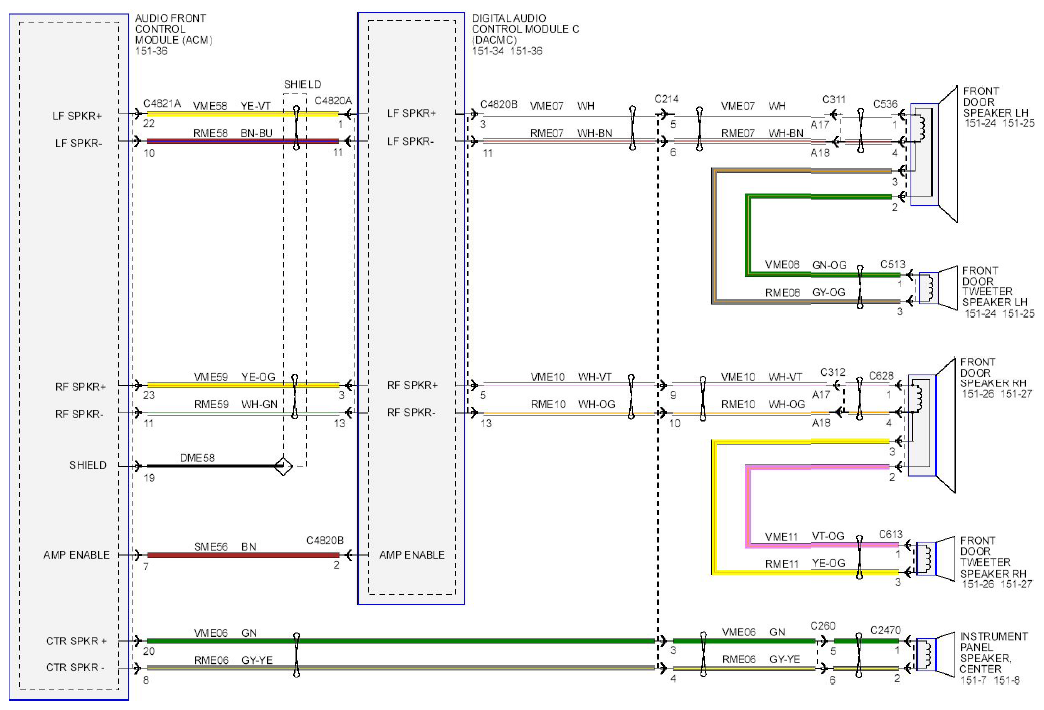

Fig 2: Audio System_Navigation Wiring Diagram - Base, MKZ (2 Of 3)
Courtesy of FORD MOTOR CO.

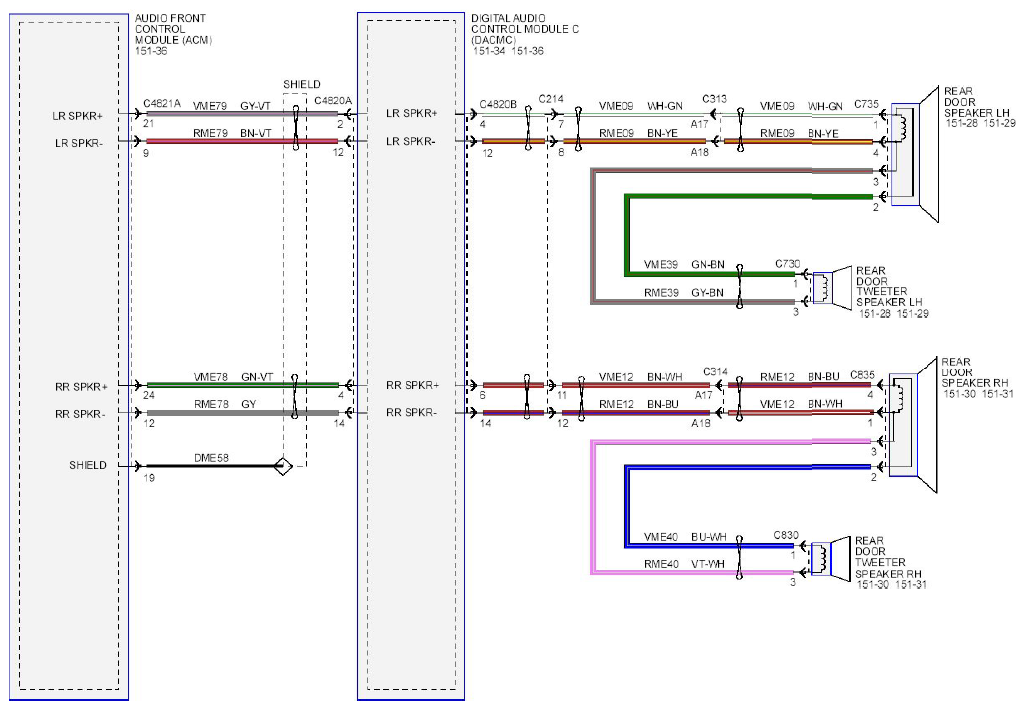

Fig 3: Audio System_Navigation Wiring Diagram - Base, MKZ (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
