Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Audio System_Navigation
>>
Base - Fusion
Base - Fusion

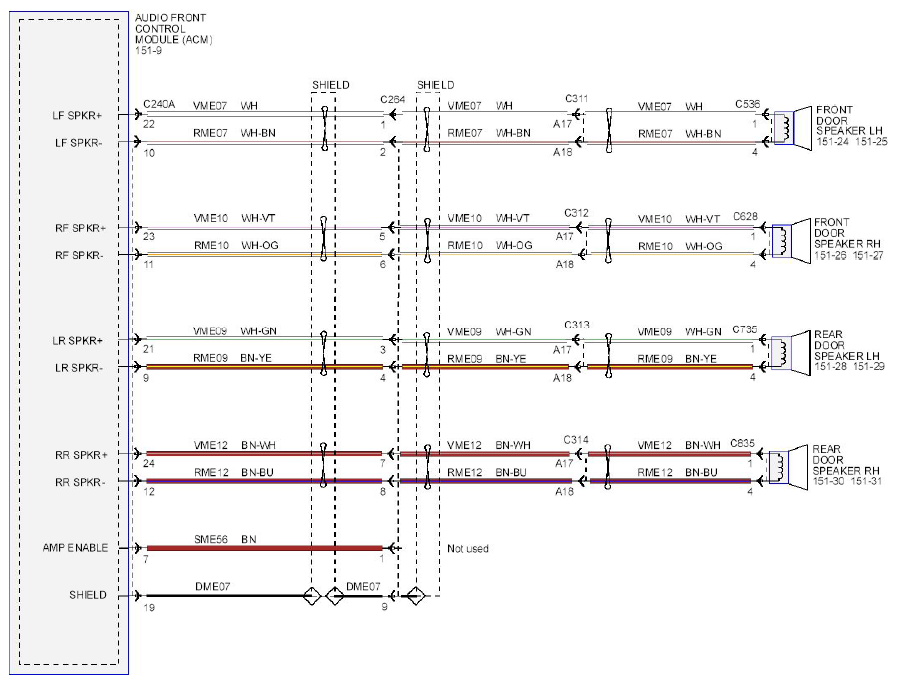

Fig 1: Audio System_Navigation Wiring Diagram - Base, Fusion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
