Adjustable Steering Column

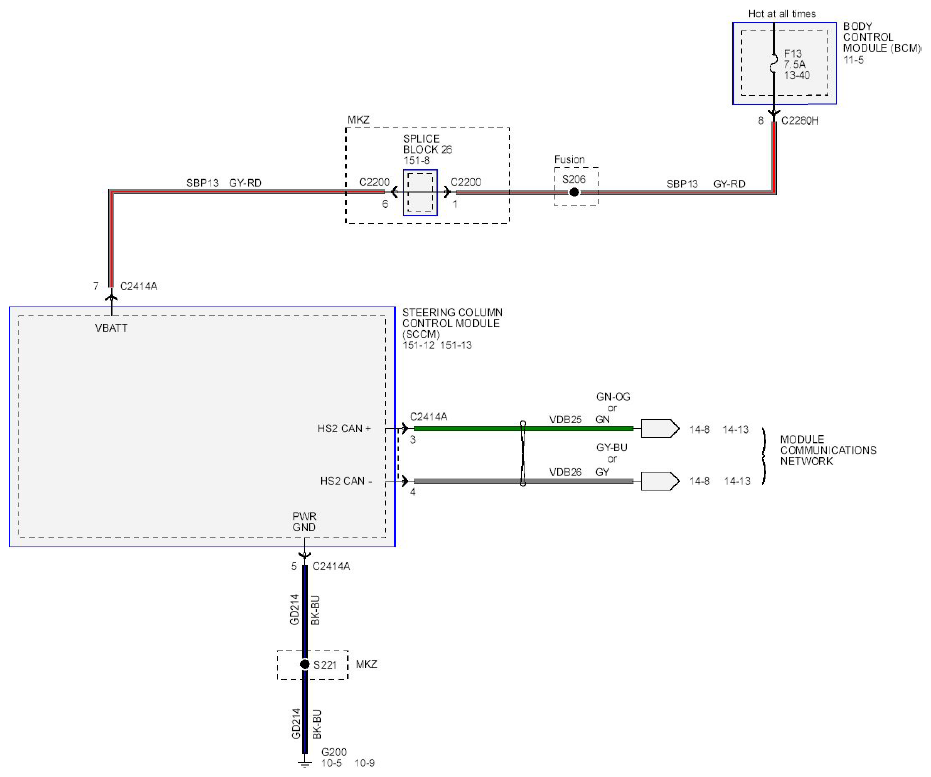

Fig 1: Adjustable Steering Column Wiring Diagram (1 Of 4)
G08754284Courtesy of FORD MOTOR CO.

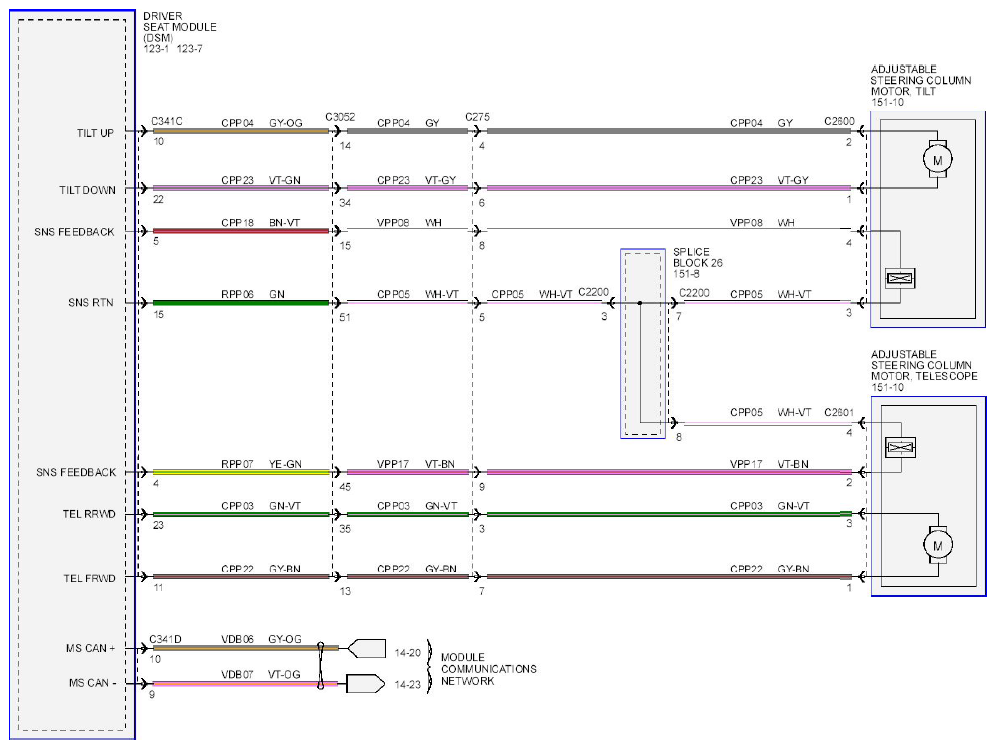

Fig 2: Adjustable Steering Column Wiring Diagram (2 Of 4)
G08754285Courtesy of FORD MOTOR CO.

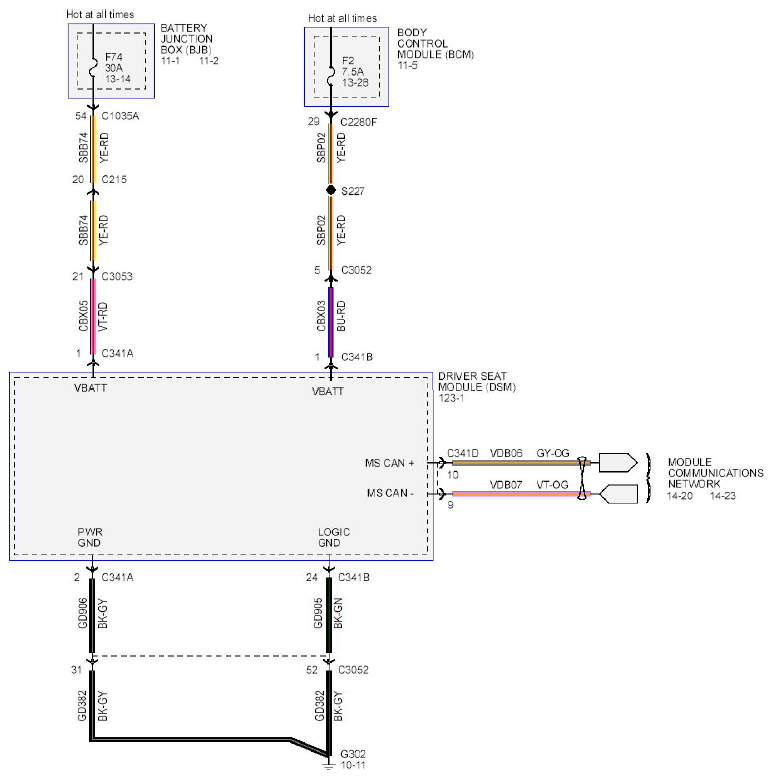

Fig 3: Adjustable Steering Column Wiring Diagram (3 Of 4)
G08754286Courtesy of FORD MOTOR CO.
Fig 4: Adjustable Steering Column Wiring Diagram (4 Of 4)
G08754287Courtesy of FORD MOTOR CO.
