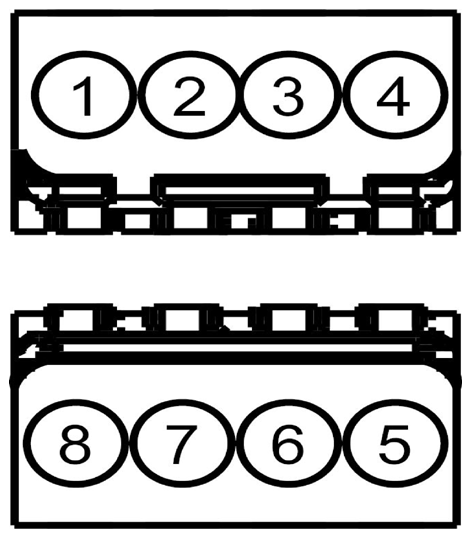

Splice Block 3 Connector End View (C736)

Fig 1: Identifying Splice Block 3 Connector (C736)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW07 (GY-OG)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	MKZ
1	RPW07 (OG)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	FUSION
2	RPW07 (GY)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	FUSION
2	RPW07 (GY-OG)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	MKZ
3	CPL69 (YE-VT)	22	SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK
4	CPL69 (YE-VT)	26	SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK
5	RPW07 (GY-OG)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN
6	RPW07 (GY)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN
7	CPL69 (VT)	26	SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK
8	CPL69 (YE-VT)	26	SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK
