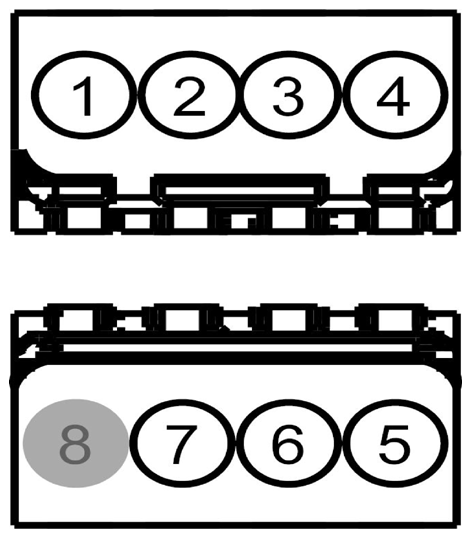

Splice Block 2 Connector End View (C688)

Fig 1: Identifying Splice Block 2 Connector (C688)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW05 (GN)	26	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN
2	RPW05 (BN)	26	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	FUSION
2	RPW05 (GN-WH)	26	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	MKZ
3	CPL78 (VT-WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	MKZ
3	CPL78 (VT)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	FUSION
4	CPL78 (VT-WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	MKZ
4	CPL78 (WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	FUSION
5	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	MKZ
5	RPW05 (GN)	26	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	FUSION
6	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN
7	CPL78 (WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	FUSION
7	CPL78 (VT-WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	MKZ
8	*	*	Not Used
