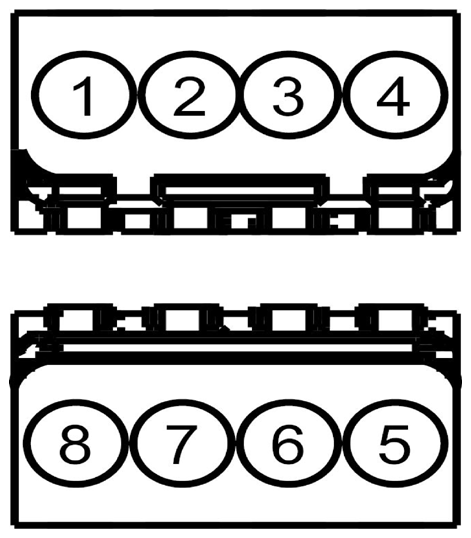

Splice Block 1 Connector End View (C588)

Fig 1: Identifying Splice Block 1 Connector (C588)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW03 (BU-OG)	26	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	MKZ
1	RPW03 (GN)	26	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	FUSION
2	RPW03 (GN)	26	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN
3	VDN09 (WH)	26	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	FUSION
3	VDN09 (GY-RD)	26	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	MKZ
4	VDN09 (WH-GN)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE
5	RPW03 (BU-GN)	22	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN
6	RPW03 (BU-GN)	22	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN
7	VDN09 (WH-GN)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	MKZ
7	VDN09 (WH)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	FUSION
8	VDN09 (WH-GN)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE
