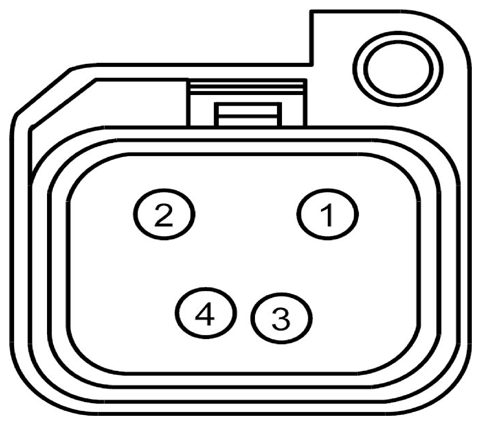

Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458F)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
HV+ (OG-WH) |
- |
HV + |
|
| 2 |
HV- (OG-BK) |
- |
HV - |
|
| 3 |
LOOP- (BARE) |
- |
LOOP - |
|
| 4 |
LOOP+ (BARE) |
- |
LOOP + |
|
