Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458D)

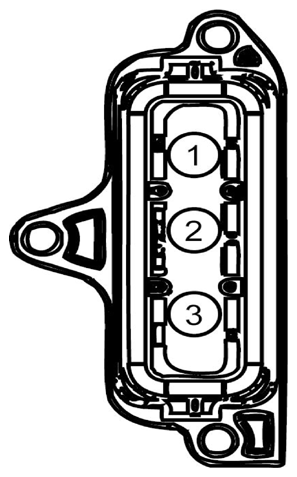

Fig 1: Identifying Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector (C1458D)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | HYA07 (WH-LB) | 20 | CONTROLLER - INVERTER SYSTEM # GENERATOR W | |
| 2 | HYA08 (WH-OG) | 20 | CONTROLLER - INVERTER SYSTEM # GENERATOR V | |
| 3 | HYA09 (WH-BU) | 20 | CONTROLLER - INVERTER SYSTEM # GENERATOR U |
