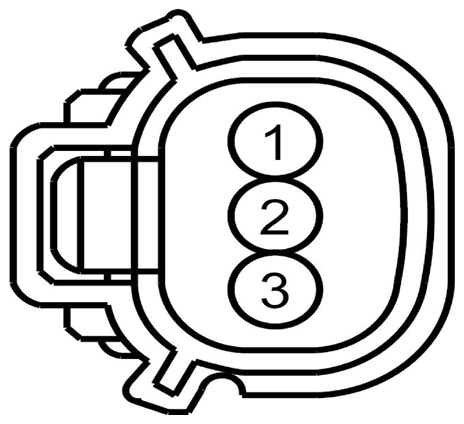

Power Steering Control Module (PSCM) Connector End View (C1463B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBB19 (BN-WH) | 18 | FUSE - 19 OR CIRCUIT BREAKER | |
| 2 | VDB25 (GN-OG) | 18 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 3 | VDB26 (GYBU) | 18 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |

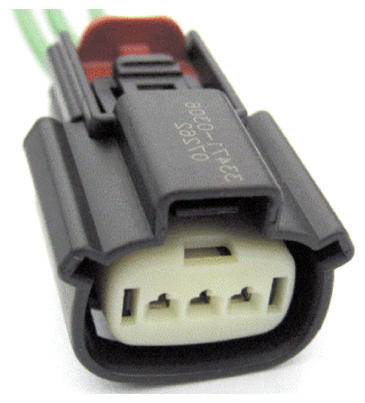

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-931 | Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses
|
