Power Steering Control Module (PSCM) Connector End View (C1463A)
Power Steering Control Module (PSCM) Connector End View (C1463A)

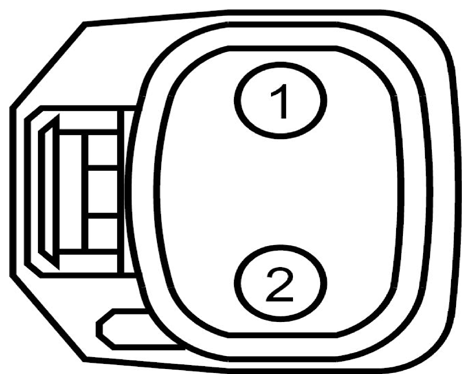

Fig 1: Identifying Power Steering Control Module (PSCM) Connector (C1463A)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
GD192 (BK-VT)
10
GROUND - FENDER FRONT LEFT # 5TH POINT
2
SBF06 (BN-RD)
10
FUSE - 6
