Manifold Absolute Pressure (Map) Sensor Connector End View (C1140)

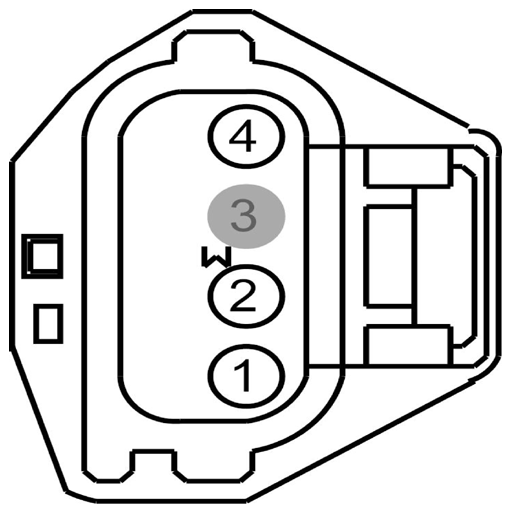

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Connector (C1140)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE803 (BU-GN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)
2	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)
3	*	*	Not Used
4	RE329 (WH-BN)	20	CTRL MOD. - POWERTRAIN # (SIGRTN)

Available Pigtail Kits

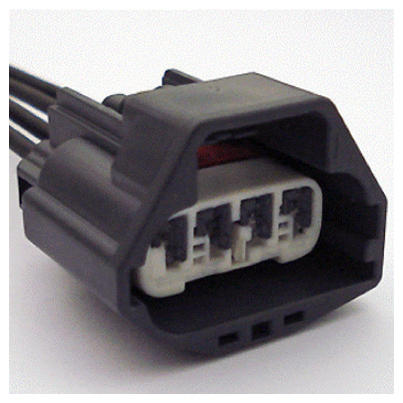

Pigtail Kit Part Number WPT-992	Service Part Number: 3U2Z-14S411-UB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Motor - Electronic Throttle Control (ETC) Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position

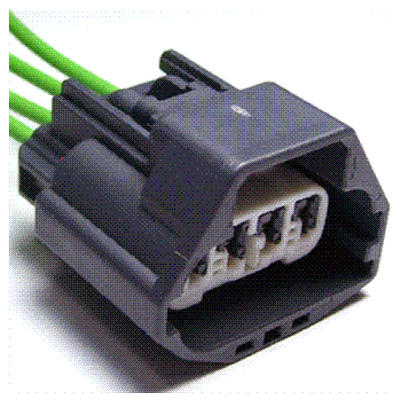

Pigtail Kit Part Number WPT-1293	Service Part Number: 3U2Z-14S411-UC  Gauge: 16  Pin material: Silver  Cavities: 4  Vehicle Uses Control - Electronic Throttle Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position
