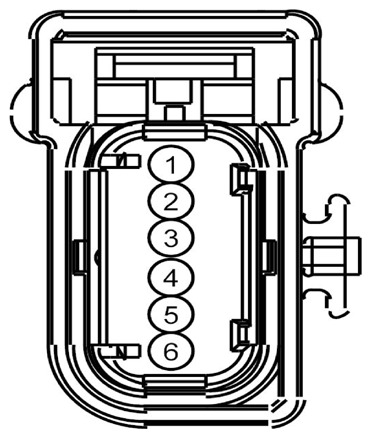

Keyless Entry Keypad Connector End View (C597)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP10 (YE-RD) | 22 | FUSE - 10 OR CIRCUIT BREAKER | MKZ |
| 1 | SBP10 (RD) | 22 | FUSE - 10 OR CIRCUIT BREAKER | FUSION |
| 2 | CPK28 (WH) | 22 | CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION | FUSION |
| 2 | CPK28 (WH-GN) | 22 | CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION | MKZ |
| 3 | CPK29 (GY) | 22 | SWITCH - KEYLESS KEYPAD LINE A | FUSION |
| 3 | CPK29 (GY-BU) | 22 | SWITCH - KEYLESS KEYPAD LINE A | MKZ |
| 4 | CPK30 (VT) | 22 | SWITCH - KEYLESS KEYPAD LINE B | FUSION |
| 4 | CPK30 (VT-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE B | MKZ |
| 5 | CPK31 (YE) | 22 | SWITCH - KEYLESS KEYPAD LINE C | FUSION |
| 5 | CPK31 (YE-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE C | MKZ |
| 6 | GD382 (BK) | 22 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | FUSION |
| 6 | GD382 (BK-GY) | 22 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | MKZ |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses
|
