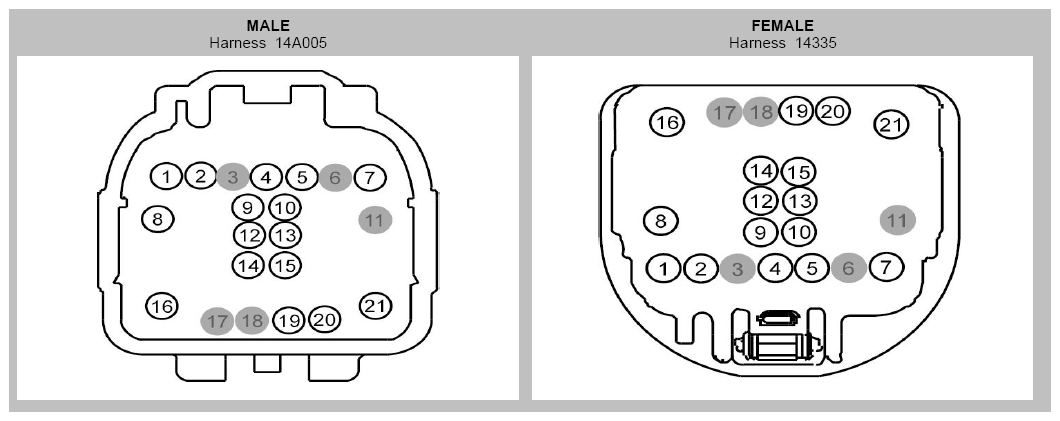

Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VLN04 (VT-GY) |
22 |
|
| 2 |
SBP32 (VT-RD) |
20 |
14A005 |
| 2 |
SBP32 (VT-RD) |
22 |
14335 |
| 3 |
* |
* |
|
| 4 |
VMM23 (BN) |
26 |
14A005 |
| 4 |
VMM23 (BN-VT) |
22 |
14335 |
| 5 |
RMM23 (GN) |
26 |
14A005 - FUSION HEV |
| 5 |
RMM23 (WH) |
26 |
14A005 - PHEV |
| 5 |
RMM23 (WH-GN) |
22 |
14335 |
| 6 |
* |
* |
|
| 7 |
GD382 (BK) |
26 |
14335 |
| 7 |
GD382 (BK-GY) |
22 |
14A005 |
| 8 |
VLN33 (GY-VT) |
22 |
|
| 9 |
VPL56 (BU) |
26 |
14335 |
| 9 |
VPL56 (BU-GY) |
22 |
14A005 |
| 10 |
CPR31 (VT) |
26 |
14A005 - FUSION HEV |
| 10 |
CPR31 (VT-BN) |
22 |
14335 |
| 10 |
CPR31 (VT-WH) |
26 |
14A005 - PHEV |
| 11 |
* |
* |
|
| 12 |
CLN68 (BU-BN) |
22 |
|
| 13 |
CPR38 (BU) |
26 |
14A005 - FUSION HEV |
| 13 |
CPR38 (WH) |
26 |
14A005 - PHEV |
| 13 |
CPR38 (WH-BU) |
22 |
14335 |
| 14 |
CLN69 (GY-YE) |
22 |
|
| 15 |
CPR40 (OG) |
26 |
14A005 - PHEV |
| 15 |
CPR40 (YE) |
26 |
14A005 - FUSION HEV |
| 15 |
CPR40 (YE-OG) |
22 |
14335 |
| 16 |
CLN09 (YE-GN) |
22 |
14335 |
| 16 |
CLN09 (YE-GN) |
22 |
14335 |
| 16 |
CLN09 (YE-GN) |
22 |
14A005 |
| 17 |
* |
* |
|
| 18 |
* |
* |
|
| 19 |
VDB06 (GY) |
26 |
|
| 20 |
VDB07 (VT) |
26 |
|
| 21 |
GD382 (BK-GY) |
22 |
14335 |
| 21 |
GD382 (BK-GY) |
22 |
14335 |
| 21 |
GD382 (BK-GY) |
22 |
14A005 |
