Inline Connector End View (C800)

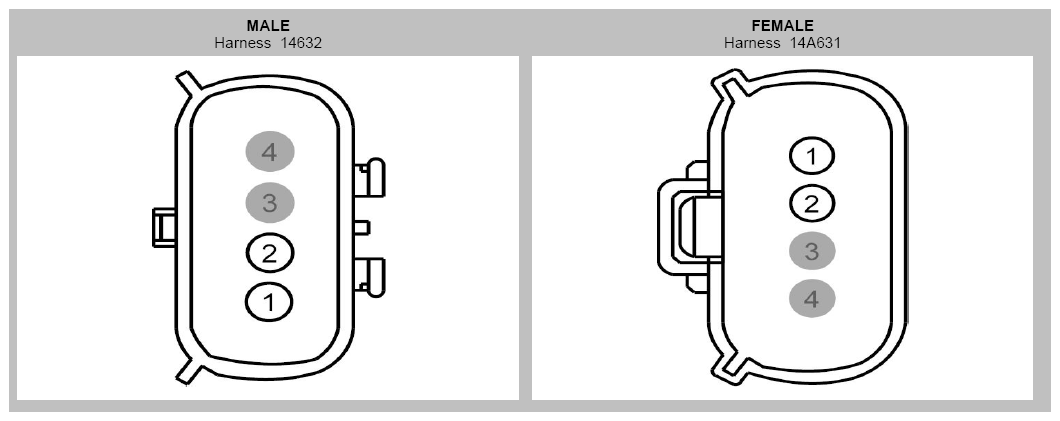

Fig 1: Identifying Inline Connector (C800)
G08756648Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 VPK39 (GN-VT) 22 14A631
1 VPK47 (VT) 22 14632
2 RPK39 (VT-OG) 22
3 * * 14632
3 VPK01 (BN-YE) 22 14A631
4 * * 14632
4 RPK01 (WH-GN) 22 14A631
