Inline Connector End View (C700)

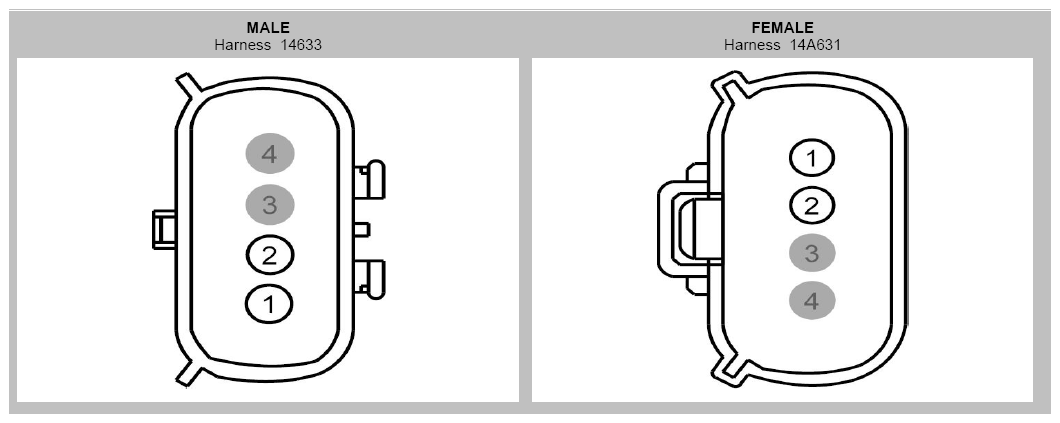

Fig 1: Identifying Inline Connector (C700)
G08756634Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 VPK39 (GN-VT) 22 14A631
1 VPK46 (GY) 22 14633
2 RPK39 (VT-OG) 22
3 * * 14633
3 VPK01 (BN-YE) 22 14A631
4 * * 14633
4 RPK01 (WH-GN) 22 14A631
