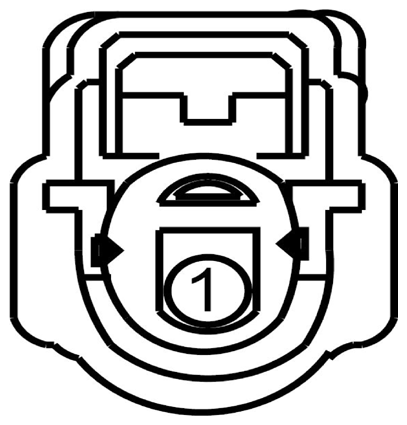

Ignition Transformer Capacitor Connector End View (C1196)

Fig 1: Identifying Ignition Transformer Capacitor Connector (C1196)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK04 (VT)	16	FUSE - 11 OR CIRCUIT BREAKER (VPWR 4)

Available Pigtail Kits

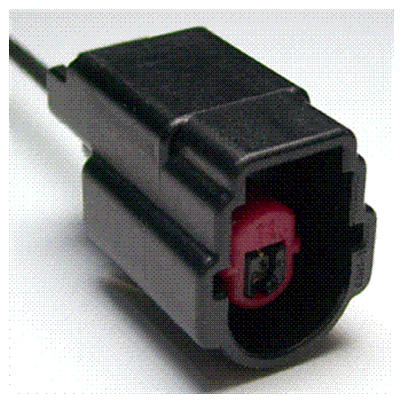

Pigtail Kit Part Number WPT-875	Service Part Number: 6U2Z-14S411-KA  Gauge: 16  Pin material: Tin  Cavities: 1  Vehicle Uses Actuator - Turbocharger Waste Gate

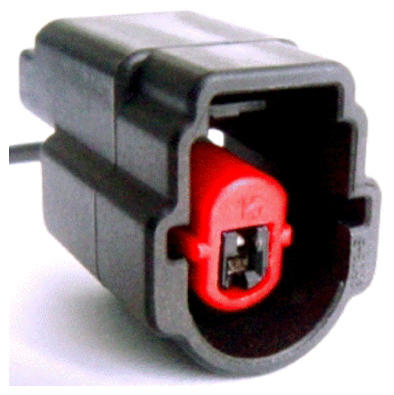

Pigtail Kit Part Number WPT-1253	Service Part Number: 6U2Z-14S411-KB  Gauge: 16  Pin material: Tin (greased)  Cavities: 1  Vehicle Uses Capacitor - Ignition/Radio
