High Current Battery Junction Box (BJB) Connector End View (C1617K)
High Current Battery Junction Box (BJB) Connector End View (C1617K)

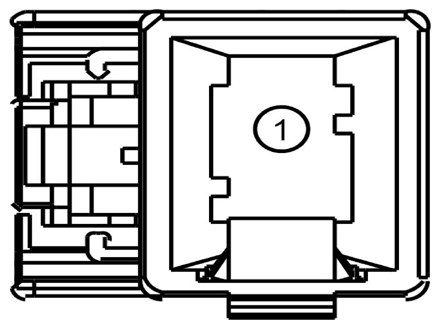

Fig 1: Identifying High Current Battery Junction Box (BJB) Connector (C1617K)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SBF05 (GY-RD)
8
FUSE - 5
Courtesy of FORD MOTOR CO.
