Front Door Latch Release Motor RH Connector End View (C609)

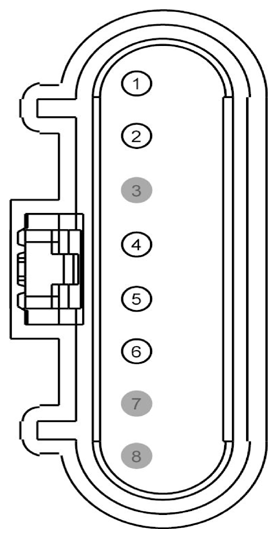

Fig 1: Identifying Front Door Latch Release Motor RH Connector (C609)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL13 (BN-GN)	14	CTRL MOD. - DOOR LOCK # ALL UNLOCK
2	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK
3	*	*	Not Used
4	RPL62 (GY)	22	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER
5	CPL35 (BU)	22	SWITCH - LATCH PASSENGER # UNLOCK
6	CPL31 (WH)	22	SWITCH - LATCH PASSENGER # AJAR
7	*	*	Not Used
8	*	*	Not Used
