Exterior Door Handle, Right Rear Connector End View (C831)

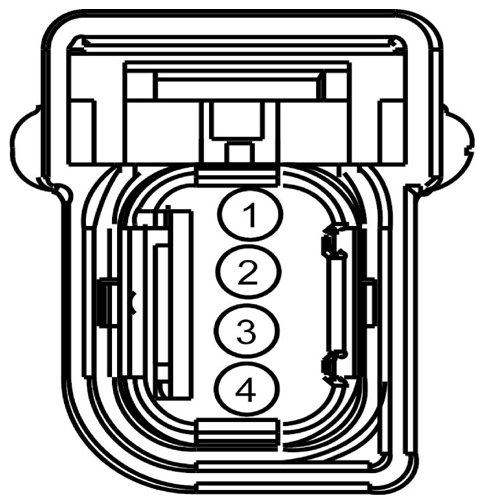

Fig 1: Identifying Exterior Door Handle, Right Rear Connector (C831)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK47 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	FUSION
1	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	MKZ
2	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE +	MKZ
3	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE -	MKZ
4	RPK39 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE	FUSION
4	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	MKZ
