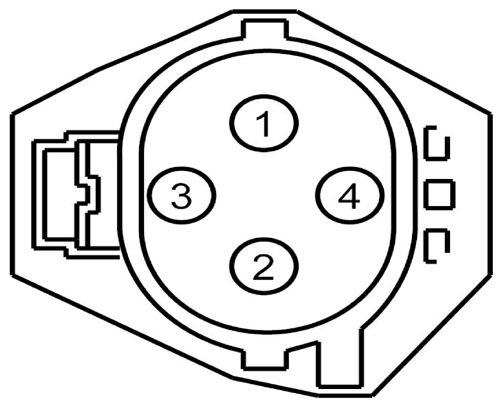

Electric Motor Coolant Pump Connector End View (C1812)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD192 (BK-VT) | 6 | GROUND - FENDER FRONT LEFT # 5TH POINT | |
| 2 | SBF05 (GY-RD) | 6 | FUSE - 5 | |
| 3 | CBK03 (GY) | 18 | FUSE - 12 OR CIRCUIT BREAKER | |
| 4 | VDN06 (WH-GN) | 18 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |

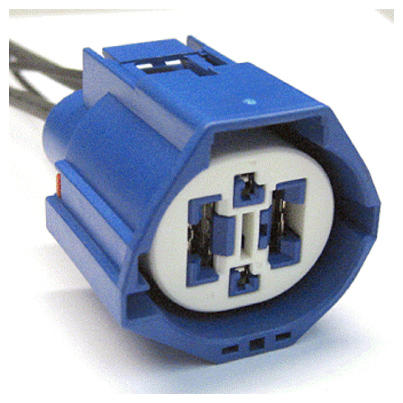

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-935 | Service Part Number: 9U2Z-14S411-LA Gauge: 10 16 Pin material: Tin Cavities: 4 Vehicle Uses
|
