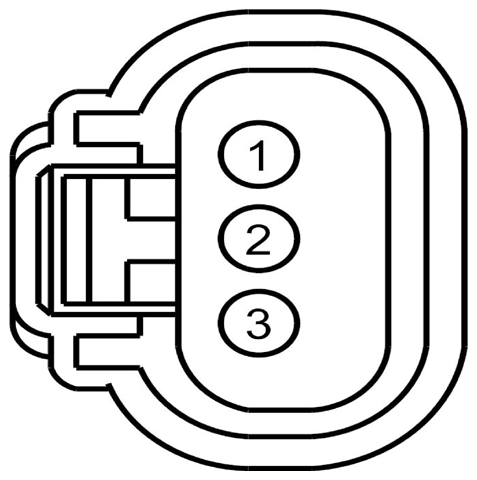

Crankshaft Position (CKP) Sensor Connector End View (C1339)

Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector (C1339)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE459 (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3)
2	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKP)
3	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (SIGRTN)

Available Pigtail Kits

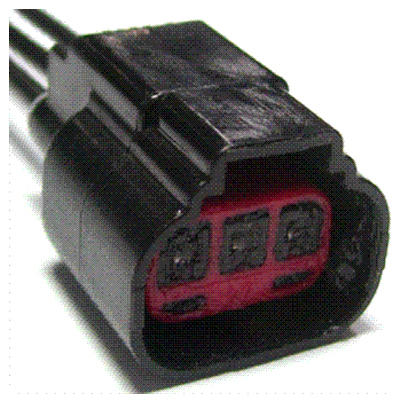

Pigtail Kit Part Number WPT-990	Service Part Number: 8U2Z-14S411-ZB  Gauge: 14  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure

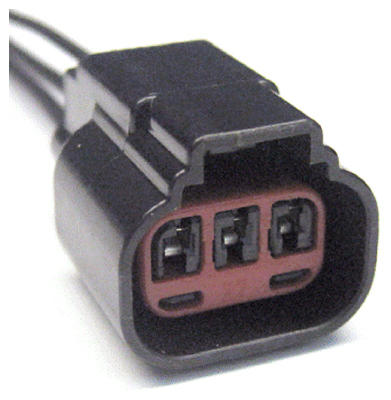

Pigtail Kit Part Number WPT-921	Service Part Number: 8U2Z-14S411-ZA  Gauge: 16  Pin material: Tin  Cavities: 3  Vehicle Uses Pump - Vacuum Resistor - Blower Motor (Rear)
