Cabin Coolant Heater Connector End View (C1815B)

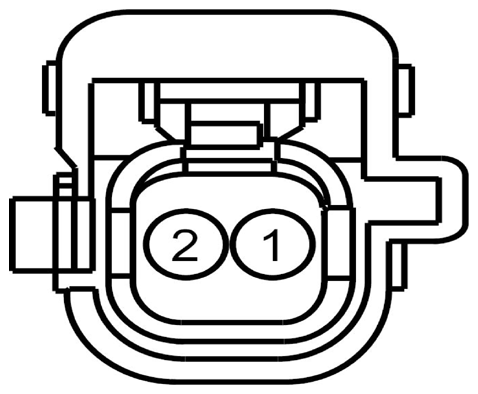

Fig 1: Identifying Cabin Coolant Heater Connector (C1815B)
G08756819Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CYB03 (BN-YE) 22 CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK POS (INT+) PHEV
2 CYB04 (VT-BN) 22 CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK NEG (INT-) PHEV
