Cabin Coolant Heater Connector End View (C1815A)

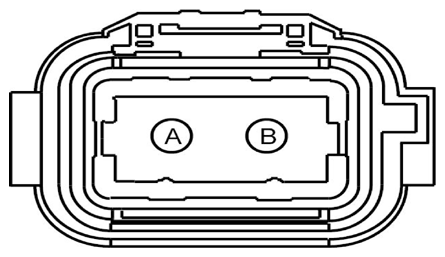

Fig 1: Identifying Cabin Coolant Heater Connector (C1815A)
G08756818Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
A HYB20 (OG) 12 HV + PHEV
B HYB21 (OG) 12 HV - PHEV
