Brake Vacuum Pump Connector End View (C1560)
Brake Vacuum Pump Connector End View (C1560)

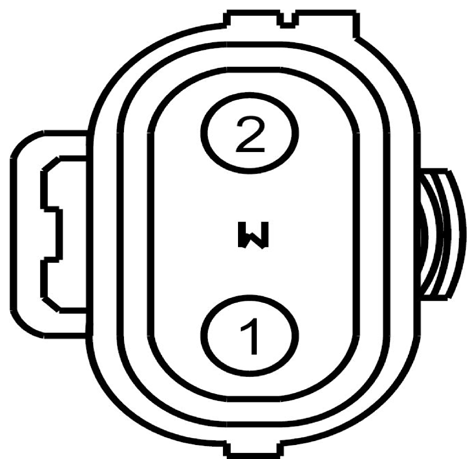

Fig 1: Identifying Brake Vacuum Pump Connector (C1560)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
CCB29 (WH-GN)
10
RELAY - VACUUM PUMP
2
GD120 (BK-GN)
10
GROUND - FENDER FRONT LEFT

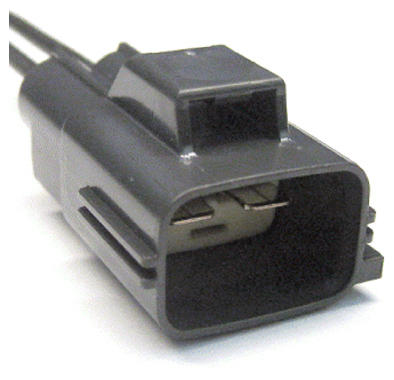

Available Pigtail Kits
Pigtail Kit Part Number
WPT-916
Service Part Number:
8U2Z-14S411-PA
Gauge:
12
Pin material:
Tin
Cavities:
2
Vehicle Uses
Pump - Vacuum
